GW Instek GFG-8020G Function Generator — Built-In 4-Digit Frequency Counter

Multi-waveform function generator with 0.2 Hz–2 MHz range and integrated LED frequency counter

Overview

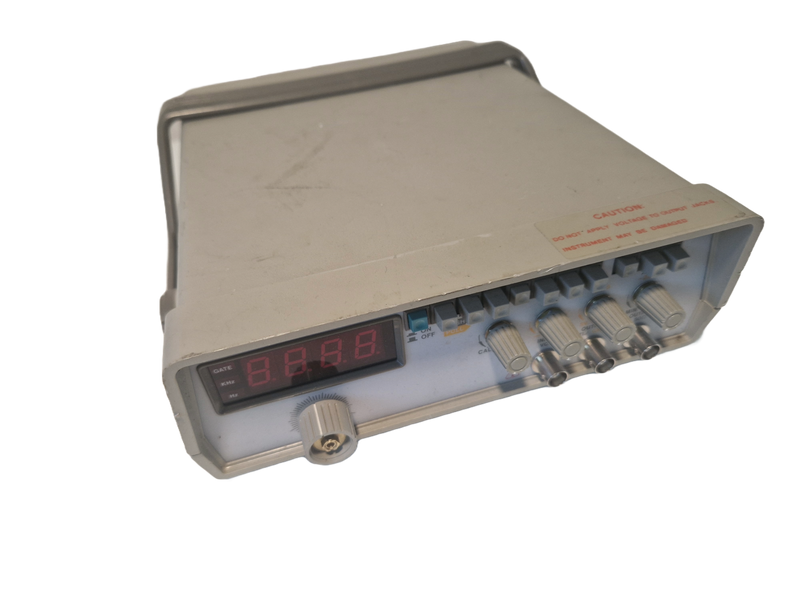

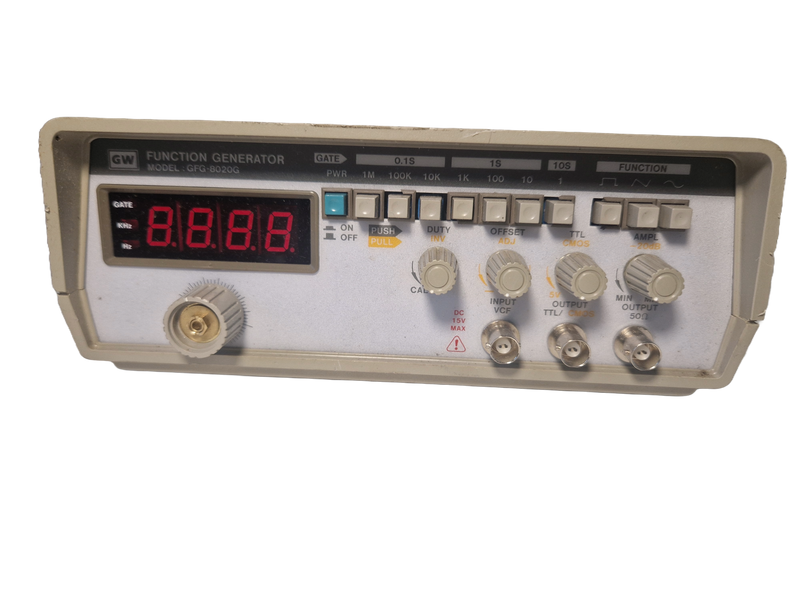

The GW Instek GFG-8020G is a versatile function generator capable of producing square, triangle, sine, ramp, and pulse waveforms across a 0.2 Hz to 2 MHz range. It features a large 0.5" 4-digit LED display paired with a built-in frequency counter for measuring internal oscillation frequency, along with coarse and fine tuning controls for precise signal setup. With VCF input, variable DC offset, and selectable TTL/CMOS pulse output, this unit is a practical bench instrument for general electronics testing, calibration, and lab work.

Key Features

  • Wide frequency range: Generates waveforms from 0.2 Hz to 2 MHz for a broad range of test applications.
  • Multiple waveform types: Outputs square, triangle, sine, ramp, and pulse waveforms from a single instrument.
  • Built-in frequency counter: Integrated counter measures internal oscillation frequency directly on the front panel.

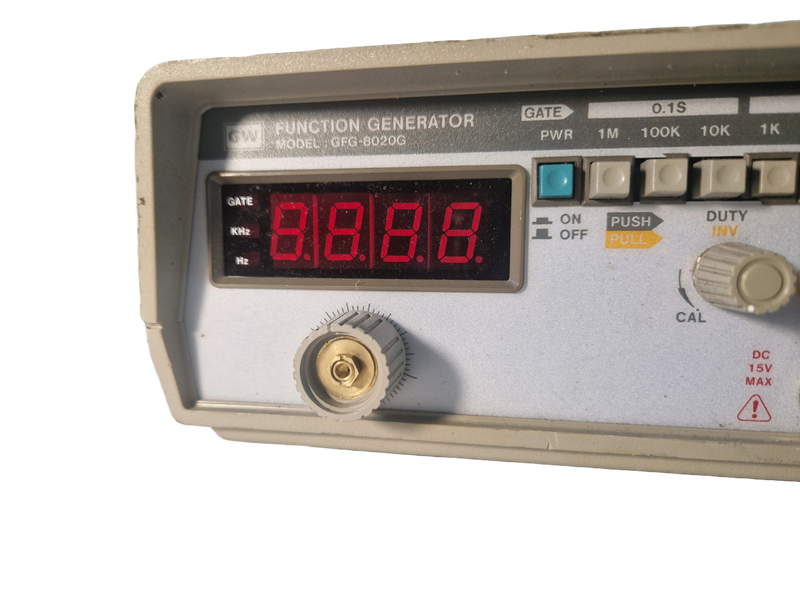

  • Large LED display: 0.5" 4-digit LED readout for clear frequency reading at a glance.
  • Coarse and fine tuning: Dual-control tuning allows for both quick range selection and precise frequency adjustment.
  • Flexible signal conditioning: Includes VCF (voltage-controlled frequency) input, variable DC offset, and selectable TTL or CMOS pulse output.
  • Adjustable DC offset: Variable offset control from +10V to -10V open circuit, or +5V to -5V into a 50-ohm load.

What's Included

Item Function Qty
GW Instek GFG-8020G Function generator with built-in frequency counter 1

Brand: GW Instek | Model: GFG-8020G

Note: power cable and probes not included unless otherwise stated. Please confirm condition and calibration status before purchase.

Technical Specifications

Frequency range: 0.2 Hz to 2 MHz.

Waveforms: Square, triangle, sine, ramp, and pulse.

Display: Large 0.5" 4-digit LED display with built-in frequency counter.

Tuning: Coarse and fine frequency adjustment.

Inputs/Outputs: VCF input; TTL or CMOS selectable pulse output.

DC offset: Variable, +10V to -10V open circuit; +5V to -5V into 50 ohms.

Compatibility & Applications

The GFG-8020G is well suited for general bench testing, circuit design verification, education/training labs, and calibration work requiring configurable waveform generation with accurate frequency readout. Its VCF input and adjustable DC offset also make it useful for sweep testing and driving circuits that require a controllable, offset signal source.
