HEP LED Driver LEXV150W24 150 W Constant Voltage

  • HEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24V
  • HEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24V
  • HEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24V
  • HEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24V
1 5

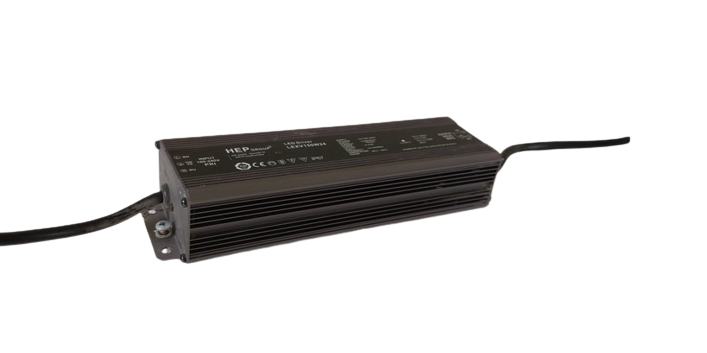

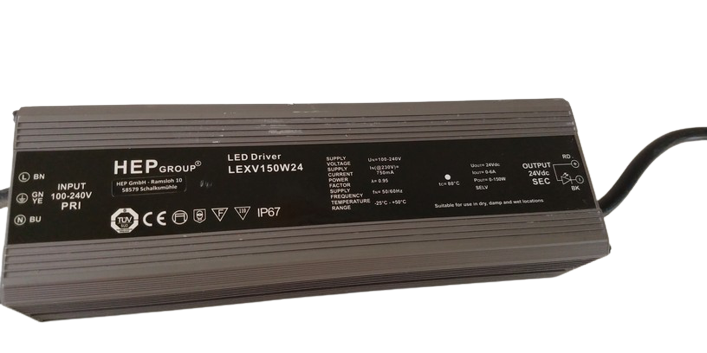

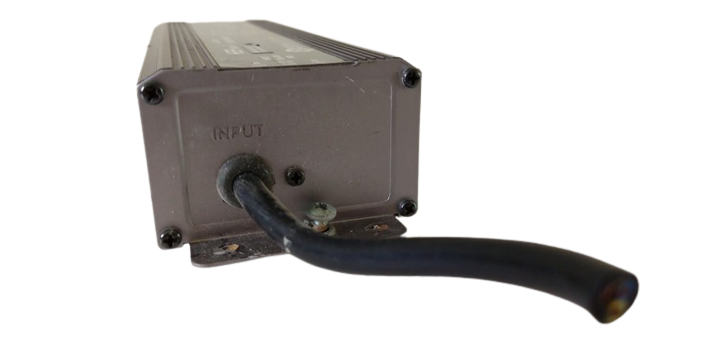

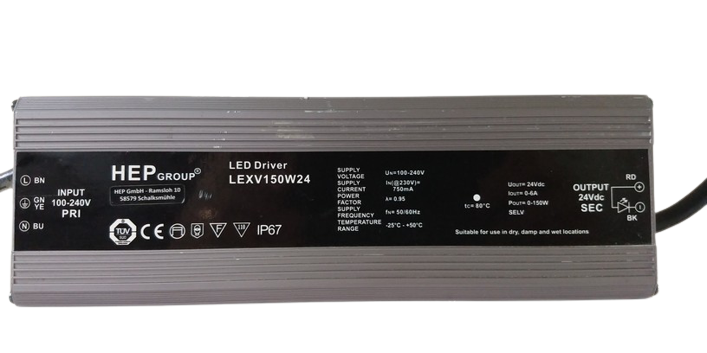

HEP LED Driver LEXV150W24 150 W Constant Voltage

€40,00
€40,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
HEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24VHEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24VHEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24VHEP LED Driver LEXV150W24 150 W Constant Voltage LED Driver - 12/24V

1x HEP LED Driver LEXV150W24 150 W Constant Voltage

Rated supply voltag 100−240 V
AC voltage range 90−264 V
Mains frequency Netzfrequenz 47−63 Hz
THD < 25 %
Power factor 0.95
Start delay < 1.0 s
Protection class I
Leakage current 3 mA
Inrush current 35 A / 310 μs
Output voltage tolerance ± 0.5 V
Output P ≤ 1
Output SVM ≤ 0.4
Operating ambient temp. . -25 − +50 °C
Max. case temp. (tc) 80 °C
Max. case temp. in fault condition 110 °C
Operating humidity 20−99 %
Storage temperature range -40 − +80 °C
Max. number of switching cycles > 100.000
Type of protection IP67
Environmental rating Outdoor
Surge transient protection 1.0 kV (L−N)2.0 kV (L-PE, N-PE)
Dimension (L x W x H) 244 x 71.2 x 45 mm
