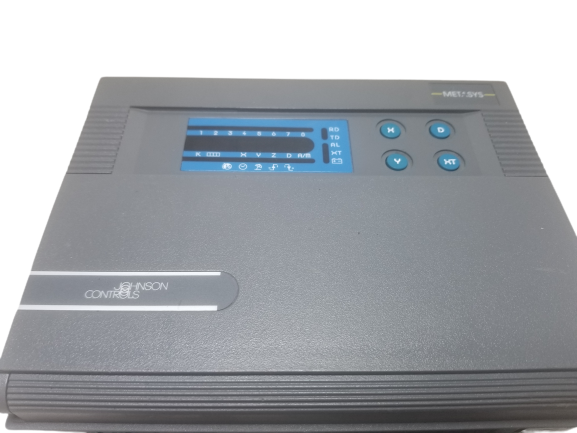

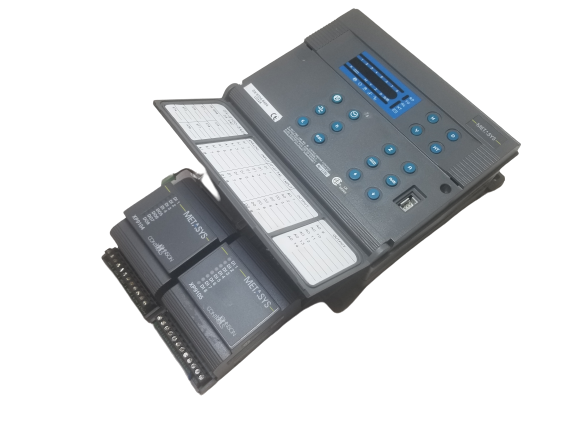

Johnson controls METASYS

Regular price
€250,00
Regular price
Sale price
€250,00
Johnson controls METASYSJohnson controls METASYSJohnson controls METASYSJohnson controls METASYSJohnson controls METASYSJohnson controls METASYS

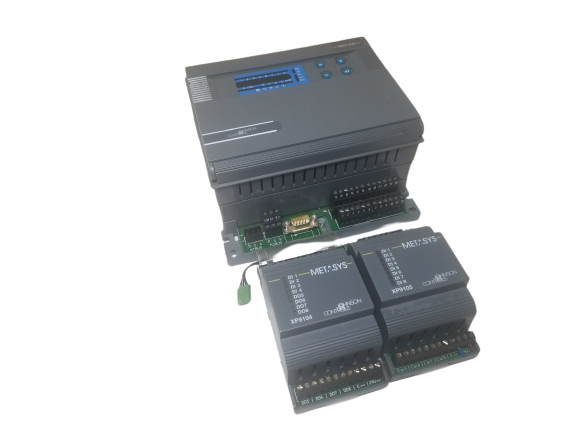

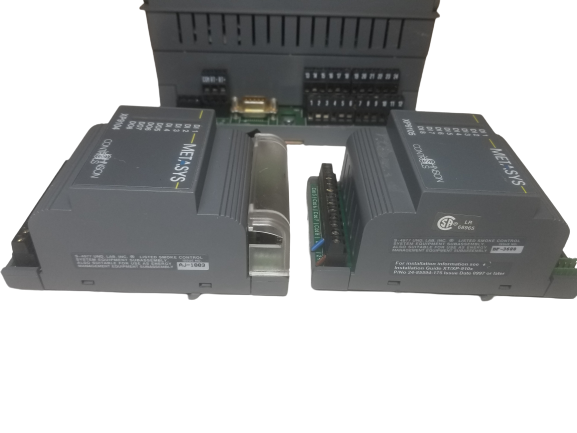

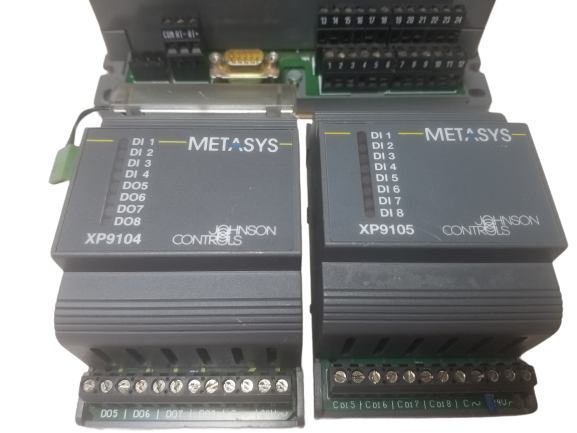

1x Johnson controls METASYS XP9105 Electrical Requirements
Power Consumption
Terminations:
Inputs
Power Supply
XP-BUS
Digital Input
LED Indicators
Operating Environment
Storage Environment
24 VAC +10% - 15%, 50/60 Hz
1 VA
14 AWG (1 x 1.5 mm2) (max.) cable
14 AWG (1 x 1.5 mm2) (max.) cable
Connector cable provided.
8 digital inputs from potential-free contacts,
Maintained or Pulse Type
Transition counter function; max. 50 Hz
Each input indicated by an LED.
+32 to 122°F (0 to +50°C)
10 to 90% RH, non-condensing
-4 to 158°F (-20 to +70°C)
1x Johnson controls METASYS XP9104 Electrical Requirements
Power Consumption
Terminations:
Inputs/Outputs
Power Supply
XP-BUS
Digital Input
Digital Outputs
LED Indicators
Operating Environment
Storage Environment
24 VAC +10% - 15%, 50/60 Hz
0.5 VA
14 AWG (1 x 1.5 mm2) (max.) cable
14 AWG (1 x 1.5 mm2) (max.) cable
Connector cable provided.
4 digital inputs from potential-free contacts,
Maintained or Pulse Type
4 triac outputs, 500 mA RMS,
On/Off or Pulse Type
Each input indicated by an LED.
Each output indicated by an LED.
+32 to 122°F (0 to +50°C)
10 to 90% RH, non-condensing

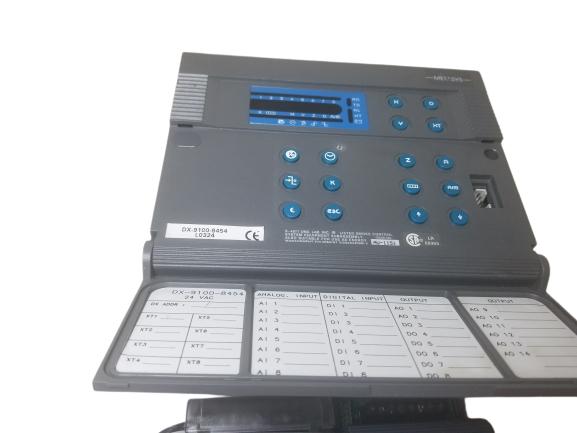

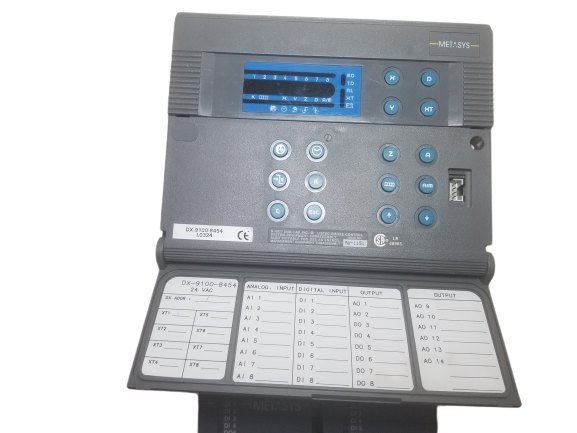

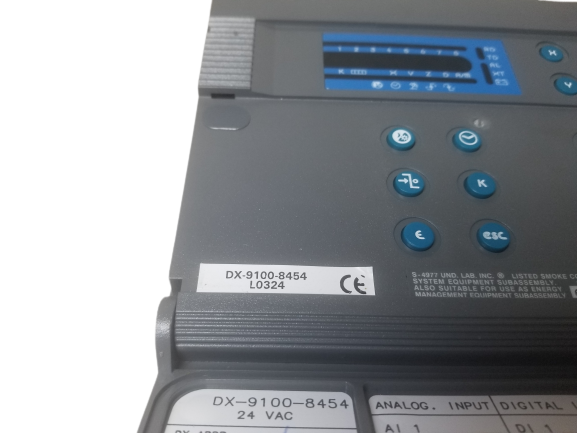

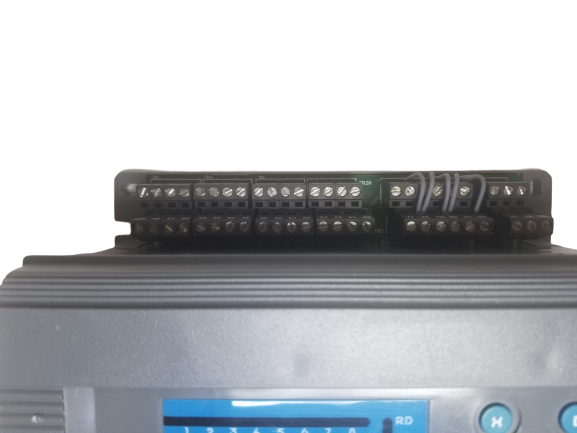

-4 to 158°F (-20 to +70°C) 1x Johnson controls METASYS DX-9100-8454 • six digital output modules
• up to 64 additional inputs/outputs from up to 8 extension modules
• twelve programmable function modules with algorithms for control
and calculation
• eight analog constants and 32 digital constants
• one programmable logic control module with 64 logic result statuses
• eight time schedule modules
• two optimal start/stop modules
