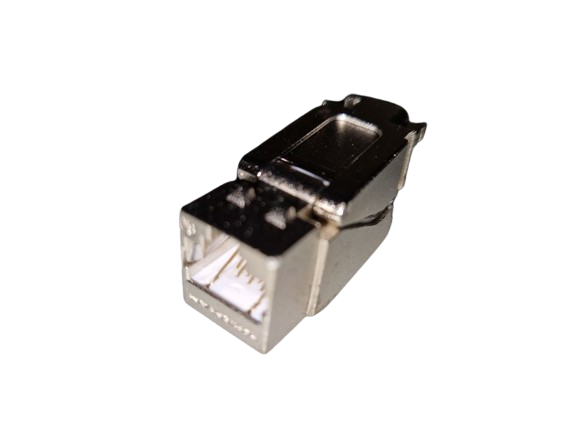

Kerman XG6S24 Toolless Keystone Connector CAT6 STP

Regular price
€50,00
Regular price
Sale price
€50,00
Kerman XG6S24 Toolless Keystone Connector CAT6 STPKerman XG6S24 Toolless Keystone Connector CAT6 STPKerman XG6S24 Toolless Keystone Connector CAT6 STPKerman XG6S24 Toolless Keystone Connector CAT6 STPKerman XG6S24 Toolless Keystone Connector CAT6 STPKerman XG6S24 Toolless Keystone Connector CAT6 STP

24x Kerman XG6S24 Toolless Keystone Connector CAT6 STP

Product description
Keystone compatible, suitable for Cat.6A UTP/STP systems and cables with a wire thickness of AWG22-24.
Installation

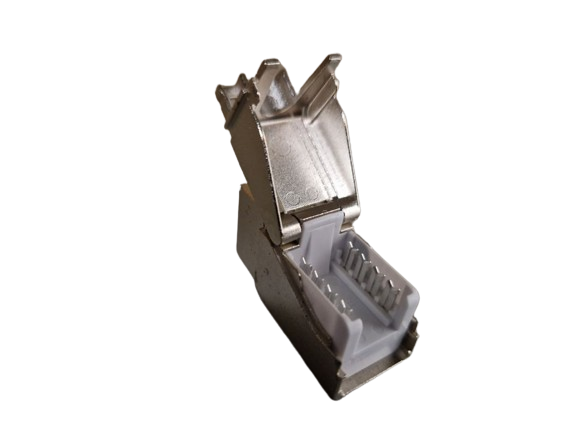

Can be installed without tools. The wires are placed according to the color order
to the locking adapter and the excess wire is cut with side cutters. Adapter
is inserted into the connector and the locking covers are closed with fingers.
Connection instructions.
Cable conductor: AWG 22-24
Cable diameter: Ø 6.0 – 9.0 mm
Thrust: max. 30N (IEC 60603-7-5)
Holding strength: 7.0 kg
Mating cycles: min. 750
STANDARDS
Use: LAN horizontal and Trunk cabling
Applications: offices, interiors, industry.
Operating temperature: -10° to +60°C
Storage temperature: -40° to +85°C
Component level: ANSI/TIA-568-DC.2, STP Cat.6A
Cabling: STP Cat.6A, EN50173-1 Class EA, EN 50173-2:2018, 500MHz 10GbE
CE/Delta/ROHS: meets the requirement level
Structure
Size (L x W x H): 41.7 x 16.9 x 19.3 mm
Body: nickel-plated pressed zinc
Conductor: PC UL94V-2
PCB: FR4, UL 94-V0
Connector contacts: nickel-plated phosphor bronze, gold plating 50 μm
IDC body: PC plastic, UL 94-V2
IDC contacts: tin-coated phosphor bronze
ELECTRICAL CHARACTERISTICS
Voltage: 125 VAC RMS
Current: 1.5 AMP
Resistance: 100 mΩ (max.)
Insulation resistance: 500 MΩ min. @ 100 VDC
Withstand: 1000 VAC RMS @ 60Hz, 1 (min.)
PoE: 4PPoE (100W)

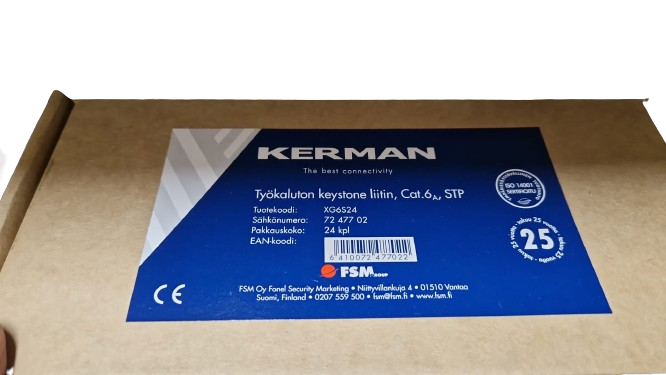

Product code XG6S24
Electricity number 72 477 02
Sales package box 24

Note

The product here is sold as a set of 24 pieces
