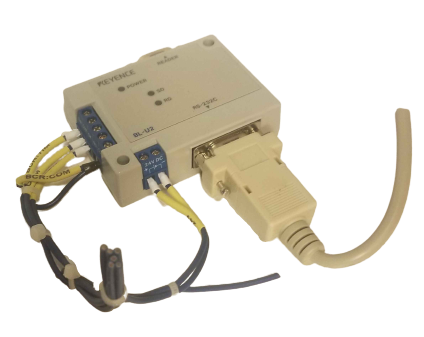

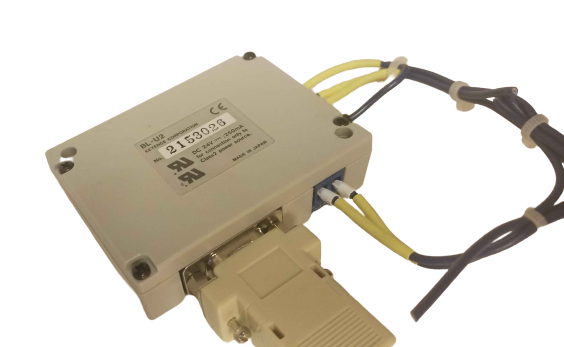

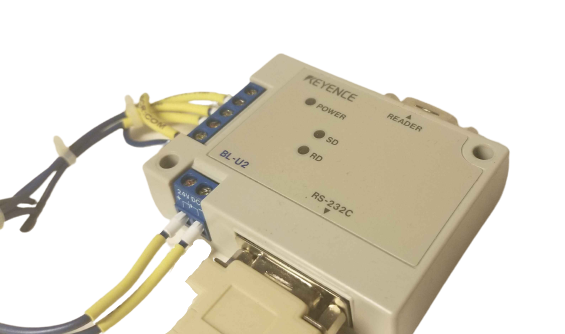

Keyence BL-U2 Laser Bar Code Scanner w Power Supply

Regular price
€60,00
Regular price
Sale price
€60,00
Keyence BL-U2 Laser Bar Code Scanner w/ Power SupplyKeyence BL-U2 Laser Bar Code Scanner w/ Power SupplyKeyence BL-U2 Laser Bar Code Scanner w/ Power SupplyKeyence BL-U2 Laser Bar Code Scanner w/ Power Supply

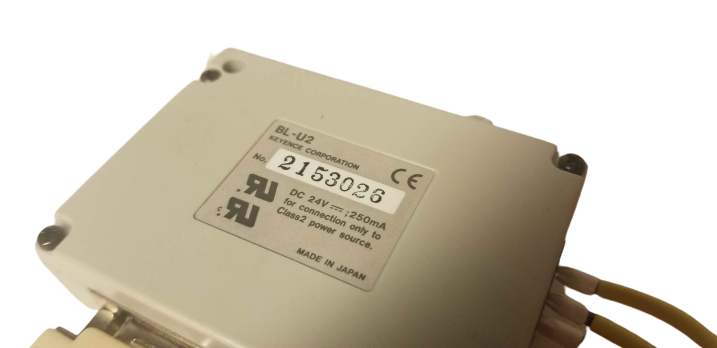

1x Keyence BL-U2 Laser Bar Code Scanner w/ Power Supply 2153026 24V DC 250mA
Model BL-U2

Reader port
Number of inputs 1 (D-sub 9-pin connector)
Power supply for the barcode reader 5 VDC ±5% (630 mA)
Communication method RS-232C
Output interface I/O terminal
Input terminals
Number of inputs 1
Input rating 15 to 26 VDC, 10 mA max.
Maximum OFF current value 1.0mA
Output terminals
Number of outputs 2
Output NPN open collector
Output rating 30 VDC, 100 mA
Leakage current (at OFF) 0.1mA or less
Residual voltage (at ON) 1V or less
Rating
Power voltage 24 VDC +10 %, -20 %
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Weight Approx. 80 g
