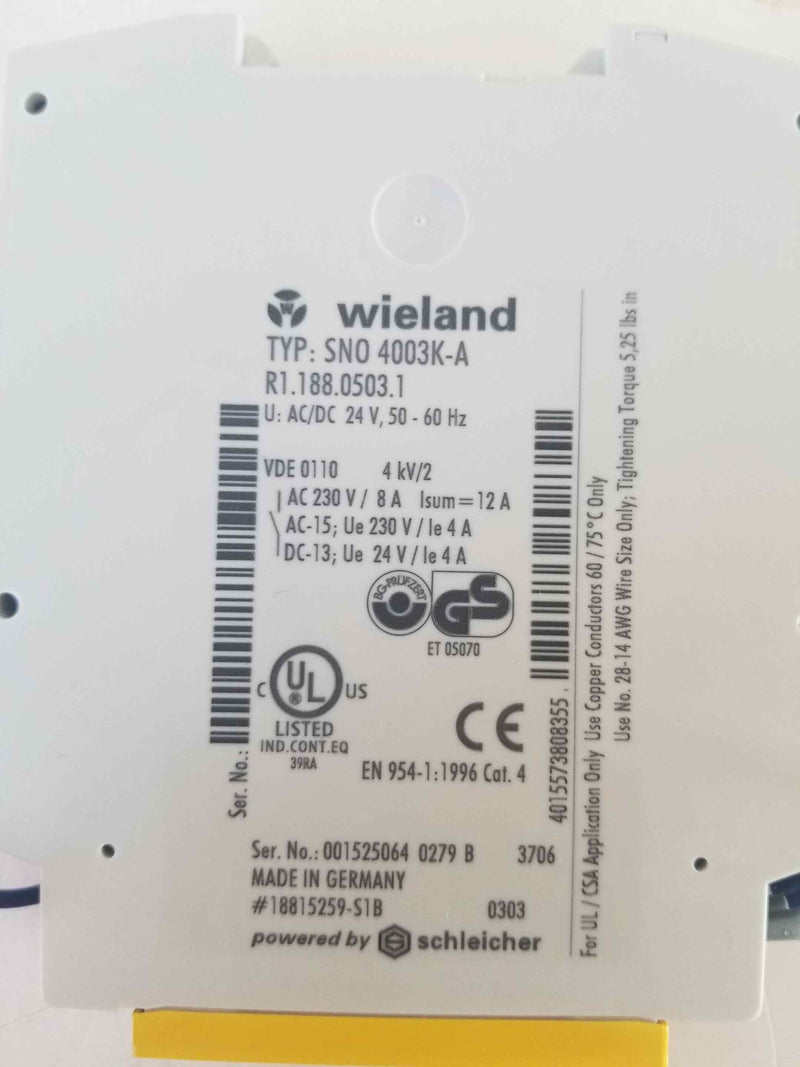

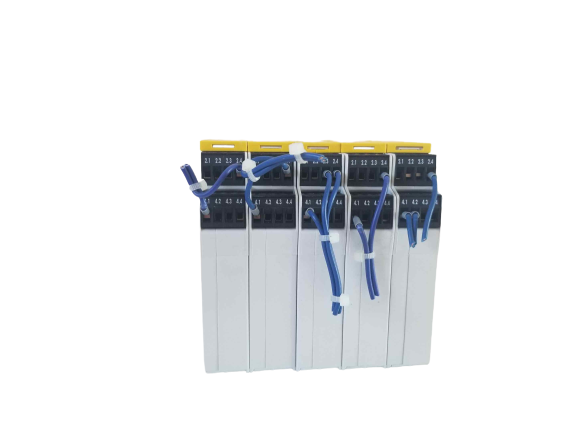

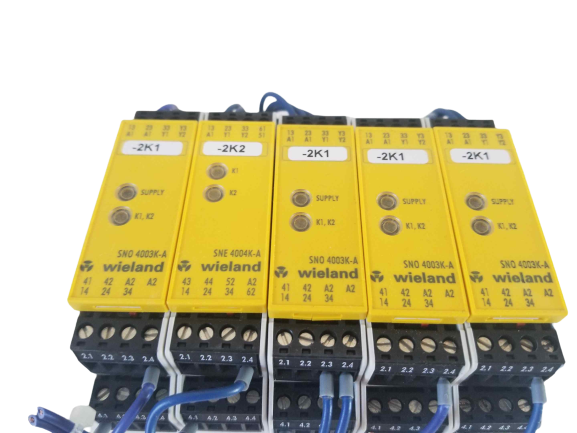

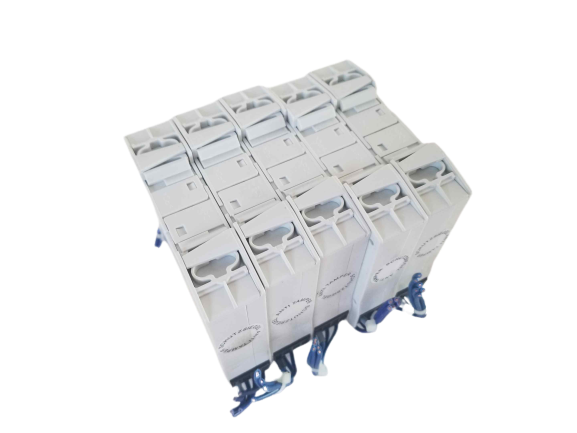

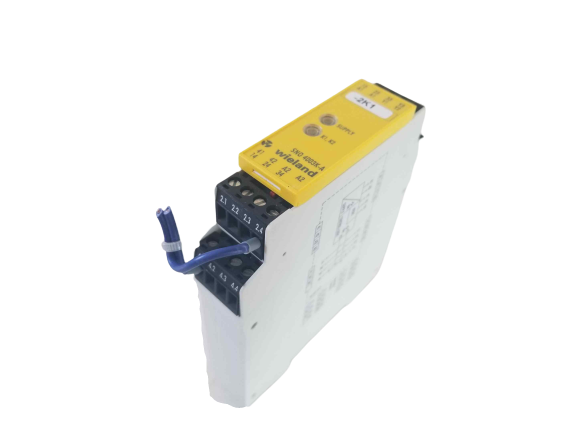

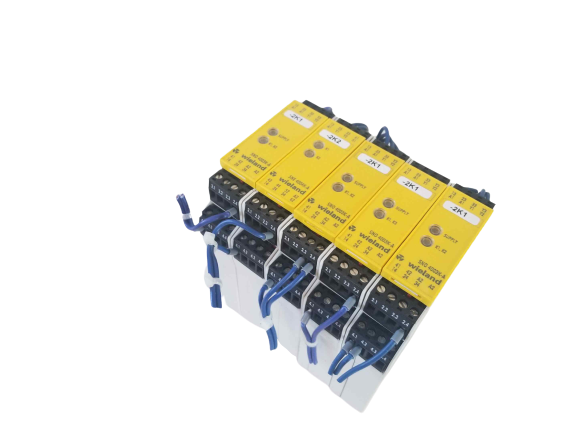

5x Wieland Typ SNO 4003K-A Safety Relay Switch E-stop
Function
according to EN 60204-1
|
Emergency stop relay
|
||
Function display
|
2 LEDs green
|
||

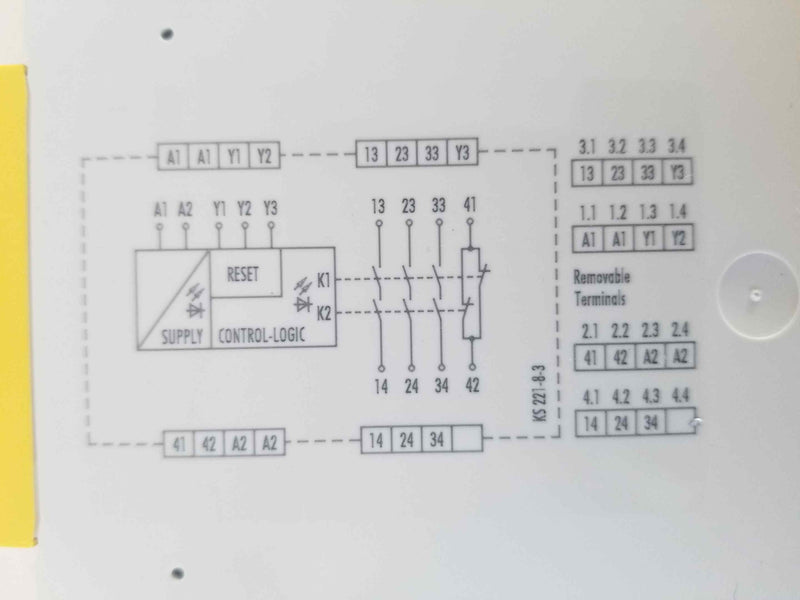

Function diagram
|
FD 221-3-1 W, FD 221-3-2 W
|
||
Power supply circuit
|
|||
Devices with rated voltage AC / DC 24 V
|
min | typ | max |
Operating voltage range
|
AC/DC 20,4 V | AC/DC 24 V | AC/DC 26,4 V |
Residual ripple
|
2,4 Vss
|
||
Rated consumption DC
|
- | 1,3 W | 1,6 W |
Rated consumption AC
|
- | 1,8 W/3,2 VA | 2,2 W/3,9 VA |
Rated frequency AC
|
50 Hz | 60Hz | |
Input inrush current (A1)
|
- | - | 1,7 A |
Rated short-circuit current
|
- | 1400 mA | - |
Response time / recovery time
|
2 s/3 s | ||
Fuse for control circuit supply
|
resistor PTC
|
||
Electrical isolation supply circuit – control circuit
|
no
|
||
Devices with rated voltage AC 115-120 V / AC 230 V
|
|||
Operating voltage range Un= AC 115-120 V
|
AC 93,5 V | AC 115-120 V | AC 132 V |
Operating voltage range Un= AC 230 V
|
AC 195 V | AC 230 V | AC 253 V |
Rated consumption
|
- | 2,0 W/2,3 VA | 2,4 W/2,8 VA |
Rated frequency AC
|
50 Hz | 60Hz |
