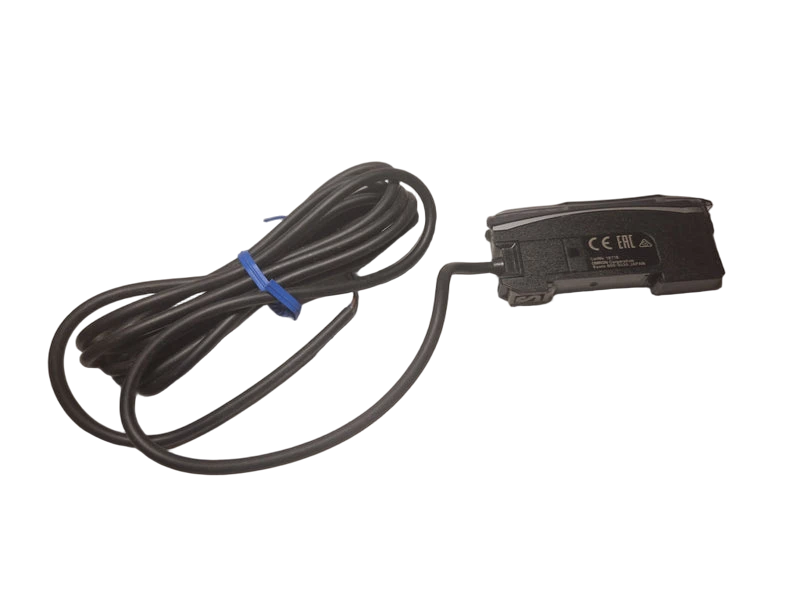

LV-11SBP - Amplifier Unit, Main Unit, PNP

  •
1 10

LV-11SBP - Amplifier Unit, Main Unit, PNP

€241,00
€241,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
LV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNPLV-11SBP - Amplifier Unit, Main Unit, PNP

The LV-11SBP is a versatile and high-performance amplifier unit designed for precision sensing applications. Its compact design, advanced functionality, and robust build make it an essential component in automation and control systems.

Key Features:

  • Model: LV-11SBP (compatible with LV-S62 and LV-S63 only).
  • Type: Main Unit.
  • Output Type: PNP open-collector x 2 channels (30 VDC max., 100 mA per output).
  • Control Output Modes:
    • Light emission stop input.
    • External calibration.
    • Set value bank selection.
    • Shift input.
  • Response Times:
    • ULTRA: 4 ms.
    • SUPER: 2 ms.
    • TURBO: 500 µs.
    • FINE: 250 µs.
    • HSP (High-Speed): 80 µs.

Expansion Capabilities:

  • Supports up to 16 expansion units (17 units including the main unit) mounted on a metal DIN rail for scalability.

Technical Specifications:

  • Power Supply:
    • 12 to 24 VDC (Ripple P-P 10% or less, Class 2).
    • Power consumption: Normal (1.7 W max.), Eco-Half (1.55 W max.).
  • Environmental Resistance:
    • Ambient temperature: -10 to +55 °C (14 to 131 °F).
    • Vibration resistance: 10 to 55 Hz, double amplitude of 1.5 mm, tested for 2 hours in each X, Y, and Z axis.
  • Material:
    • Main body and cover made of durable polycarbonate.
  • Weight: Approx. 80 g (including 2 m cable).
