Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and ot

  • Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.
1 7

Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.

€150,00
€520,00
€150,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.

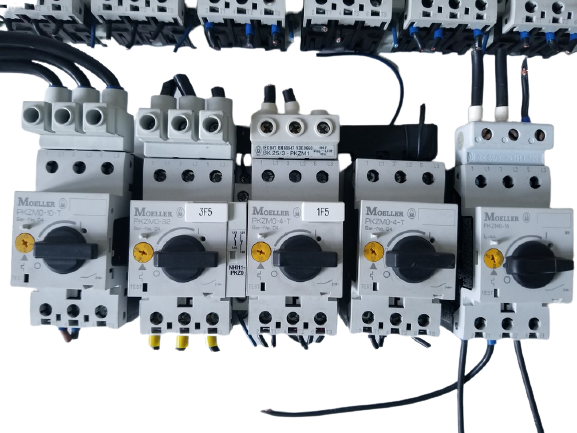

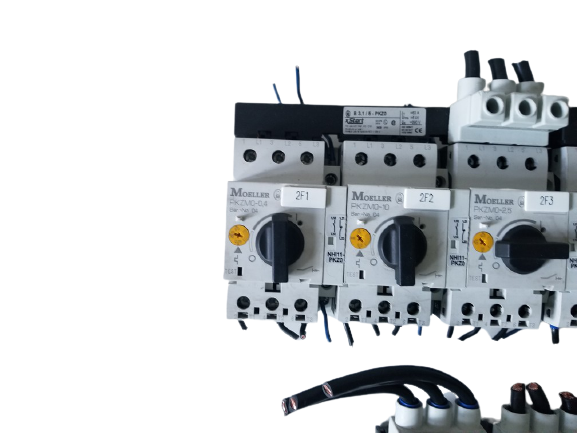

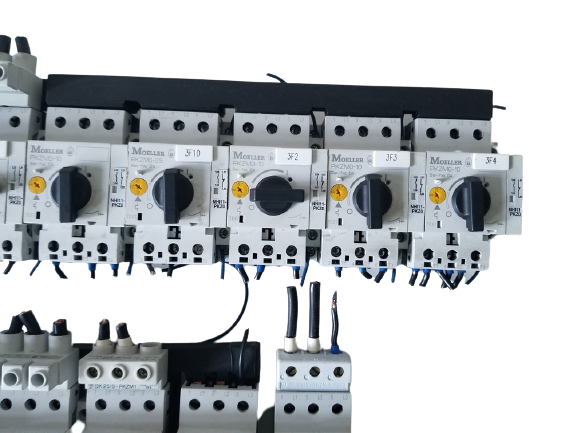

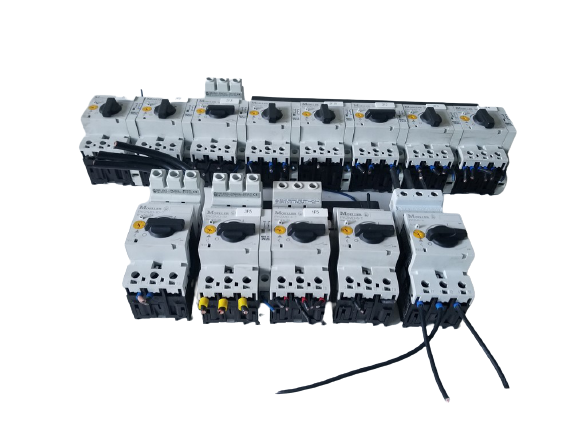

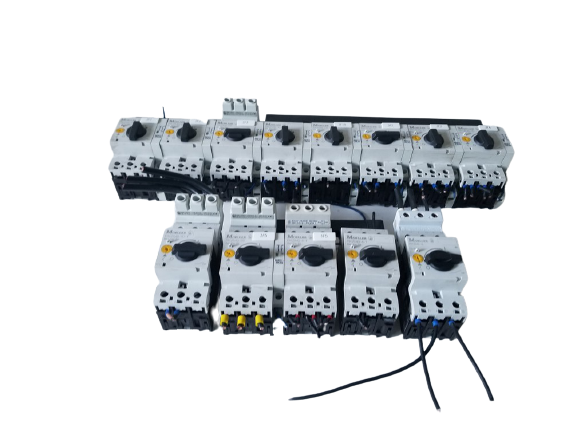

13x Moeller PKZM0-0,4 and PKZM0-0-2,5 and PKZM0-0-10 and PKZM0-0-16 and other models.
1x PKZM0-0,4

Type of protection

motor breaker
Max motor power
 0.09kW
Mounting
 DIN
Range of overcurrent release settings
 0.25...0.4A
Electrical connection
 screw terminals
Short circuit release
 5.6A
IP rating
 IP20
Operating temperature
 -25...55°C
Operating voltage
 220...690V AC
5x PKZM0-10
Rated impulse withstand voltage (Uimp) 6000 V AC
temperature compensation  -5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
≤ 0.25 %/K, residual error for T > 40°
Rated frequency - min 50 Hz
Rated frequency - max 60 Hz
Rated operational current (Ie) 10 A
Rated operational power at AC-3, 220/230 V, 50 Hz 2.2 kW
Rated operational power at AC-3, 380/400 V, 50 Hz 4 kW
2x PKZM0-2,5
Standards
IEC/EN 60947, VDE 0660, UL, CSA
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature storage - 40 - 80 °C
Ambient temperature open -25 - +55 °C
Ambient temperatureEnclosed - 25 - 40 °C
AC-3220 V 230 V 240 V [P] 0.37 kW
AC-3380 V 400 V 415 V [P] 0.75 kW
AC-3440 V [P] 1.1 kW
AC-3500 V [P] 1.1 kW
AC-3660 V 690 V [P] 1.5 kW
Rated uninterrupted current [Iu] 2.5 A
1x PKZM0-10-T
Rated frequency - min 50 Hz
Rated frequency - max 60 Hz
Rated operational current (Ie) 10 A
Rated operational voltage (Ue) - max 690 V

Rated uninterrupted current (Iu) 10 A
Short-circuit current 60 kA DC, up to 250 V DC, Main conducting paths
Short-circuit release 224 A, Irm, Setting range max. ± 20% tolerance, Trip blocks
The basic device, fixed 20 x Iu, Trip Blocks Switching capacity
10 A (3 contacts in series), DC-5 up to 250V
10 A, AC-3 up to 690 V

1x PKZM0-32

Rated impulse withstand voltage (Uimp)
6000 V AC
Height 93mm
IP Rating IP20
Mechanical Shock Resistance 25g Shock duration 10ms Half-Sinusoidal according to IEC 60068-2-27
Mounting Din Rail
Number of Poles 3 Pole
Operating Temperature Range -25 - 55°C
Overload Rating 25 - 32A
Packaging Types Each
Product Range PKZM0
Short Circuit Rating 60kA
Standards IEC/EN 60947-4-1; UL 60947-4-1; CSA - C22.2 No. 60947-4-1-14; CE Marking
Storage Temperature Range -40 - 80°C
Unspsc V18 39121521
Voltage Rating 690V
Weight 0.23kg
Width 45mm

2x PKZM0-4-T

Current Rating 2.5 → 4 A
Motor Protection Component Circuit Breaker
Supply Voltage 690 V ac
Series Eaton Moeller
Overall Length 93mm
Overall Width 45mm
Overall Depth 76mm

1x PKZM0-16

Current Rating 10 → 16 A
Motor Protection Component Motor Controller
Supply Voltage 690 V
Motor Protection System IE3 Efficiency Class Motor
Number of Inputs 3
Series Eaton Moeller
Output 3
