Moeller Expansion Module Bundle — EM4, LE4 & PS4 Series

Mixed lot of analog and digital remote expansion modules — 7 units total, all discontinued

Overview

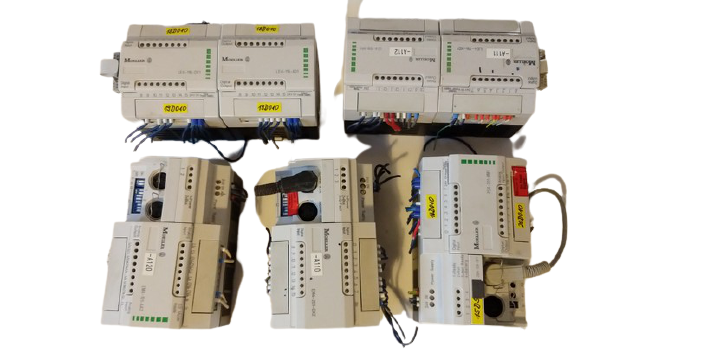

This bundle includes seven Moeller remote expansion modules: an EM4-101-AA2 analog input/output module, an EM4-201-DX2 input module, an LE4-108-XR1 output module, two LE4-116-XD1 digital output modules, an LE4-116-DX1 digital output module, and a PS4-201-MMA digital input/output module. All modules have been discontinued by the manufacturer.

Key Features

  • Analog I/O capability: EM4-101-AA2 provides 8 analog inputs and 4 analog outputs, SUCONET-K compatible.
  • Fast digital input response: EM4-201-DX2 offers a 0.2 ms response time.
  • Dual voltage output module: LE4-108-XR1 supports 230 VAC (2A) and 24 VDC (2A) outputs across 2 channels, with LED status indication.
  • High-density digital output: LE4-116-XD1 and LE4-116-DX1 modules each provide 16 digital output points at 24 VDC.
  • Plug-in screw terminals: Straightforward wiring on applicable modules.

What's Included

Model Function Qty
EM4-101-AA2 Analog input/output module 1
EM4-201-DX2 Input module 1
LE4-108-XR1 Output module (digital, dual voltage) 1
LE4-116-XD1 Digital output module, 16 points 2
LE4-116-DX1 Digital output module, 16 points 1
PS4-201-MMA Digital input/output module 1

Brand: Moeller | Life Cycle Status: All modules discontinued by manufacturer | Condition: Mixed — see note below

Technical Specifications

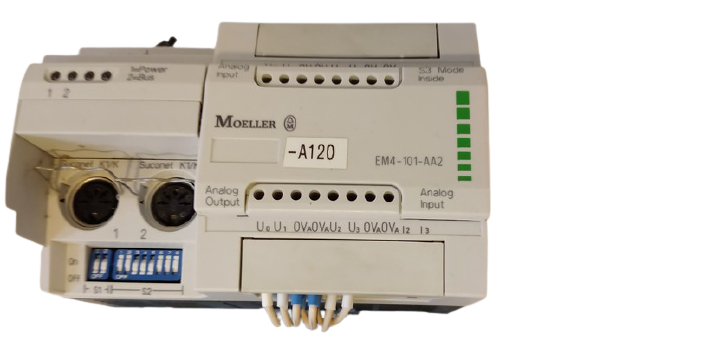

EM4-101-AA2 Analog Input/Output

Type: Remote expansion module.

Features: 8 analog inputs, 4 analog outputs, SUCONET-K compatible.

Power: 24 VDC, 0.15 A.

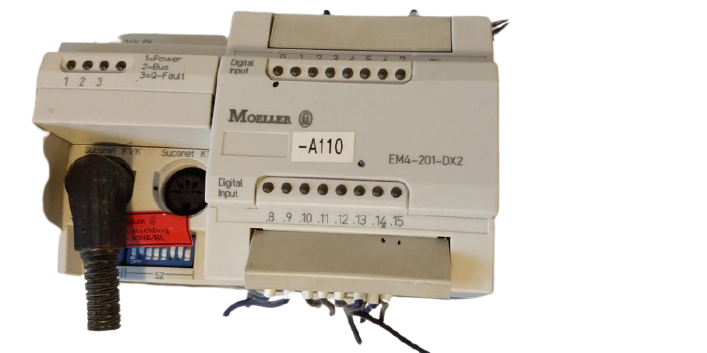

EM4-201-DX2 Input Module

Type: Remote expansion module.

Input voltage: 24 VDC, 6 mA.

Response time: 0.2 ms.

Supply power: 24 VDC, 0.4 A.

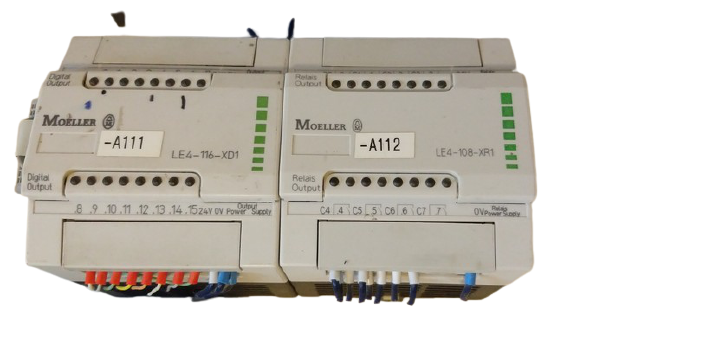

LE4-108-XR1 Output Module

Type: Expansion module, digital type.

Features: LED output status indication, plug-in screw terminal.

Output capacity: 2 channels.

Voltage: 230 VAC (2A) and 24 VDC (2A).

LE4-116-XD1 Digital Output Module (x2)

Features: Digital output, 16 points.

Power supply: 24 VDC, 0.1 A.

Output: 24 VDC, 0.5 A.

Temperature range: 0-55°C.

Weight: 260 g.

Tightening torque: 0.5-0.6 Nm.

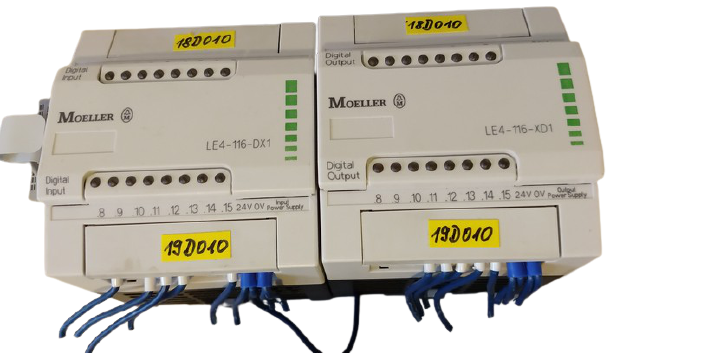

LE4-116-DX1 Digital Output Module

Features: Digital output, 16 points.

Voltage: 24 VDC.

Current: 0.1-0.5 A.

Compatibility & Applications

These modules are well suited to maintaining or expanding existing Moeller EM4/LE4/PS4 series remote I/O systems requiring analog or digital expansion. As all modules are discontinued by the manufacturer, buyers should confirm compatibility with their existing system and consider long-term support/spare part availability before purchasing.

Item Condition Note

The two LE4-116-XD1 modules are used. The PS4-201-MMA module may have surface scratches or dents but remains functional. Please check pictures carefully and reach out with any questions before purchasing.
