Moxa EDS-205A 5-port compact unmanaged Ethernet switches

  •
1 8

Moxa EDS-205A 5-port compact unmanaged Ethernet switches

€108,00
€108,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Moxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switchesMoxa EDS-205A 5-port compact unmanaged Ethernet switches

This Industrial Ethernet Switch is designed for critical applications in harsh environments, providing reliable and robust networking solutions. With support for 10/100BaseT(X) and 100BaseFX Ethernet connections, it ensures fast data transfer speeds, whether you're working with multi-mode or single-mode fiber. The redundant dual power inputs (12/24/48 VDC) offer added reliability and minimize downtime, making it ideal for industries that demand continuous uptime.

Built to withstand extreme conditions, this device features a rugged IP30 aluminum housing and is certified for use in hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK). With a wide operating temperature range of -40°C to 75°C, it remains functional even in the most demanding conditions.

Designed for easy integration and seamless operation, the switch supports IEEE standards, including 10BaseT, 100BaseT(X), and flow control, along with full/half duplex mode, auto MDI/MDI-X connection, and auto negotiation speed for optimal performance. It is equipped with a removable 3-contact terminal block for flexible installation and features overload current and reverse polarity protection for safety.

Key Features:

  • Ethernet Ports:
    • 10/100BaseT(X) (RJ45 connector)
    • 100BaseFX (multi/single-mode, SC or ST connector)
  • Redundant Power Inputs: Dual 12/24/48 VDC for enhanced reliability
  • Housing: IP30 aluminum housing
  • Rugged Design: Certified for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
  • Wide Operating Temperature: -40°C to 75°C (-T models)
  • Connectivity Standards:
    • IEEE 802.3 for 10BaseT
    • IEEE 802.3u for 100BaseT(X)
    • IEEE 802.3x for flow control
  • Connection Features:
    • Full/Half duplex mode
    • Auto MDI/MDI-X connection
    • Auto negotiation speed
  • Input Voltage Range: 12 to 48 VDC
  • Input Current: 0.12 A @ 24 VDC
  • Overload Current Protection: 1.1 A @ 24 VDC
  • Reverse Polarity Protection: Supported

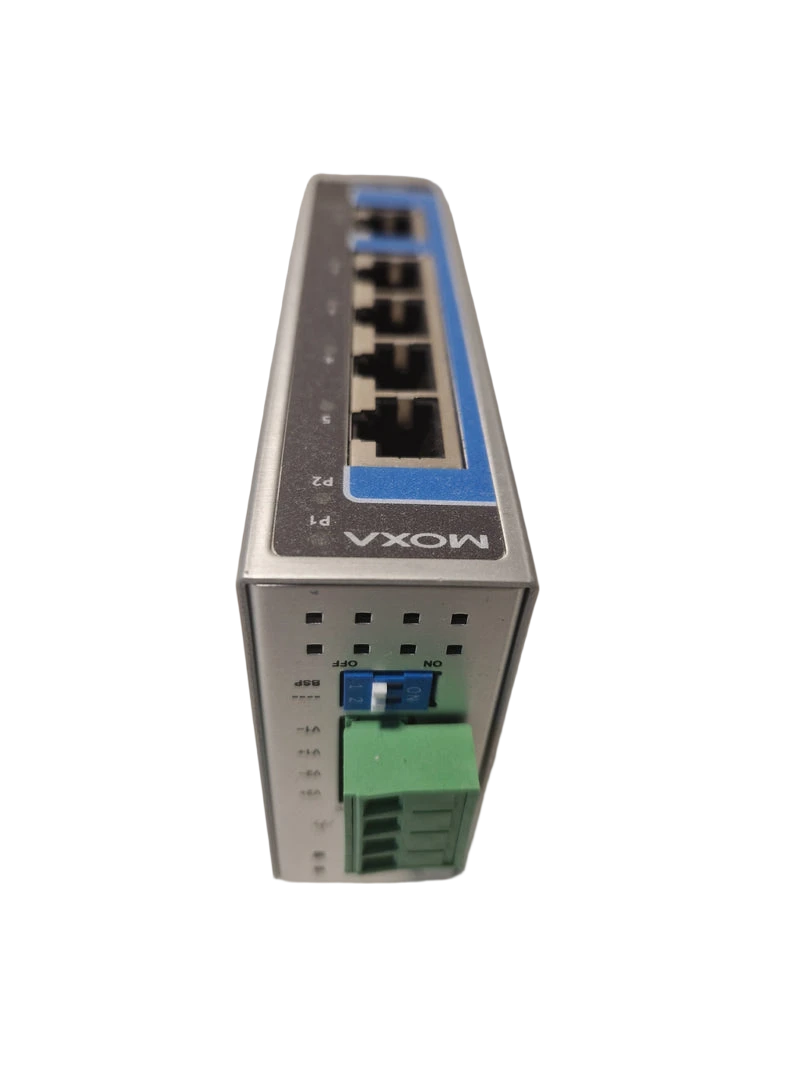

  • Connection Type: 1 removable 3-contact terminal block(s)
