Omron Sysmac CS1G-CPU43H PLC Bundle — CPU, Power Supply & Communication Module

CS1G-CPU43H programmable controller with C200HW-PA204 power supply and CS1W-SCB21 communication module

Overview

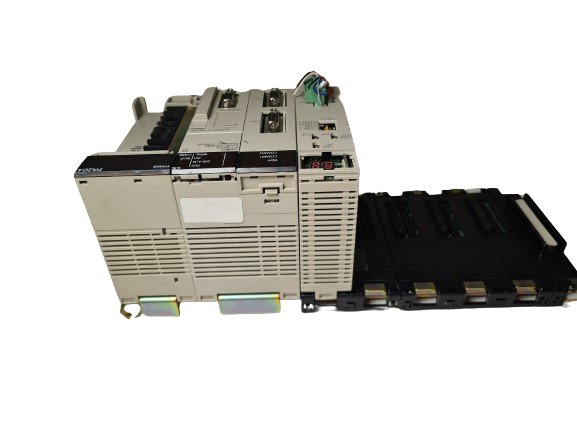

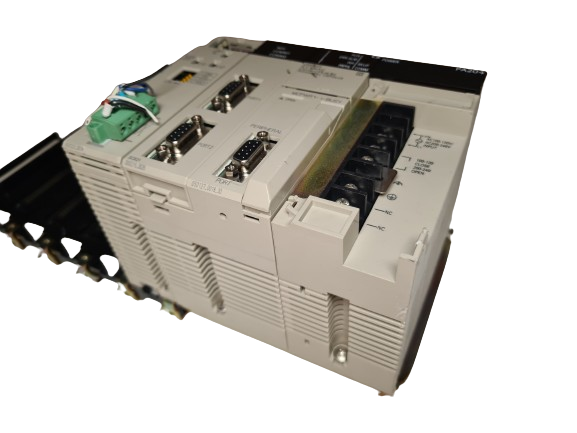

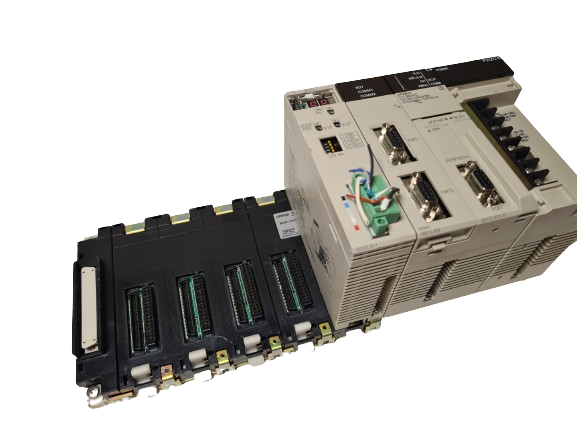

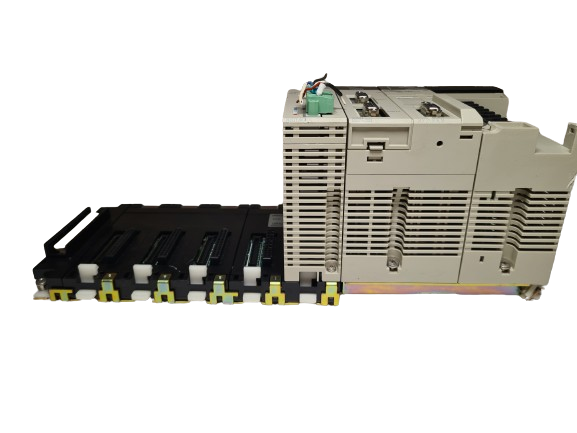

This lot is an Omron Sysmac CS1G-CPU43H programmable controller bundle, including a C200HW-PA204 PLC power supply and a CS1W-SCB21 communication module. Together, these units form a core control setup for an Omron CS1 series automation system, offering high-speed logic processing, reliable AC-to-DC power conversion, and expanded serial communication capability.

Key Features

  • High I/O capacity: CPU supports 960 I/O points across up to 2 expansion racks.
  • Large program and data memory: 20K steps of program capacity and 64K words of data memory.
  • Fast processing: LD instruction execution time of 0.04 µs for responsive control logic.
  • Universal AC input power supply: C200HW-PA204 accepts 85-264V AC at 50/60 Hz, delivering regulated 5-26V DC output.

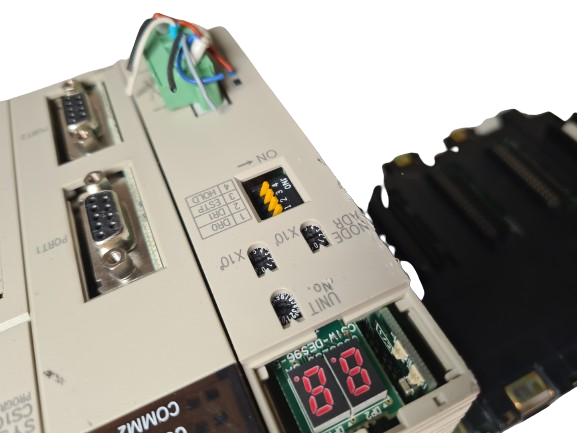

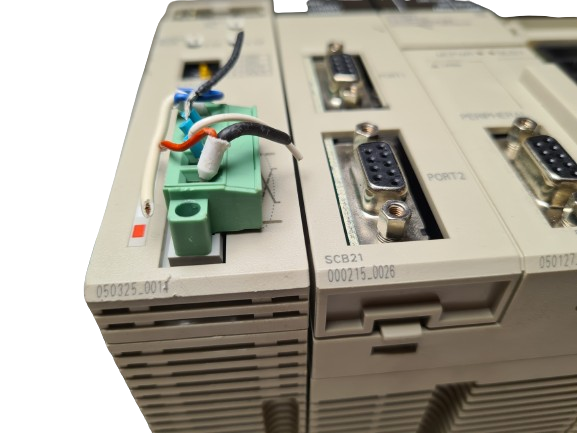

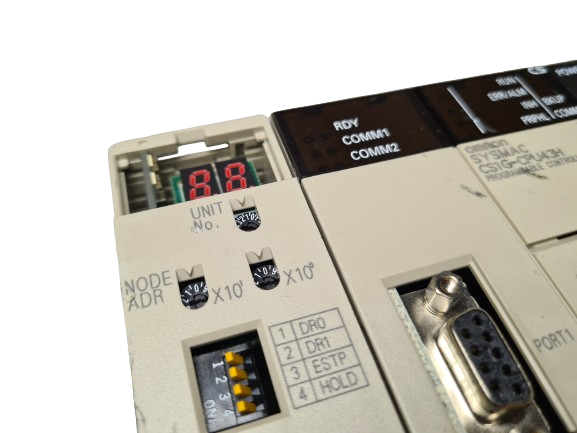

  • Expanded communication: CS1W-SCB21 communication module adds serial ports for connecting peripheral and networked devices.

What's Included

Model Function Qty
CS1G-CPU43H Sysmac CS1 series programmable controller (CPU) 1
C200HW-PA204 PLC system power supply 1
CS1W-SCB21-V1 Communication module 1

Brand: Omron | Series: Sysmac CS1 | Price: Per lot | Condition: Sold as-is — see note below

Technical Specifications

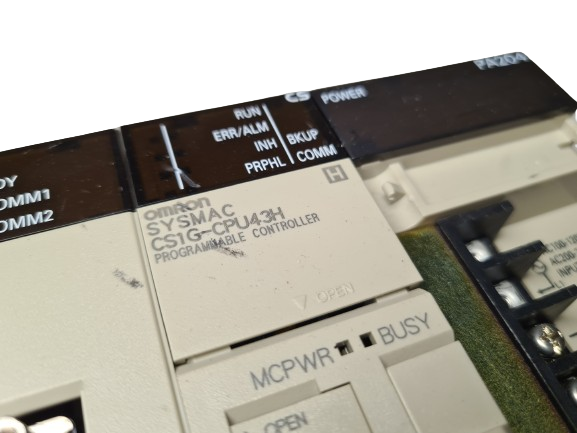

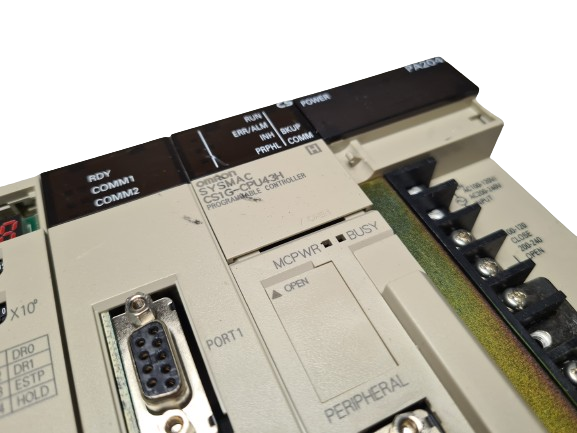

CS1G-CPU43H Programmable Controller

I/O points: 960 (expansion racks: 2).

Program capacity: 20K steps.

Data memory capacity: 64K words.

LD instruction execution time: 0.04 µs.

Current consumption: 0.78 A at 5V (system).

C200HW-PA204 PLC Power Supply

ETIM class: PLC system power supply.

Input voltage: 85-264V AC (50 Hz and 60 Hz).

Max. input current: 30A (50 Hz and 60 Hz).

Output voltage: 5-26V DC.

Max. output current: 4.6A DC.

Dimensions (W x D x H): 58mm x 100mm x 130mm.

Compatibility & Applications

This bundle is well suited to assembling or expanding an Omron CS1 series control system requiring high I/O capacity, fast logic execution, and additional serial communication. Buyers should confirm the CPU, power supply, and communication module configuration matches their existing rack and I/O setup before integration.

Item Condition Note

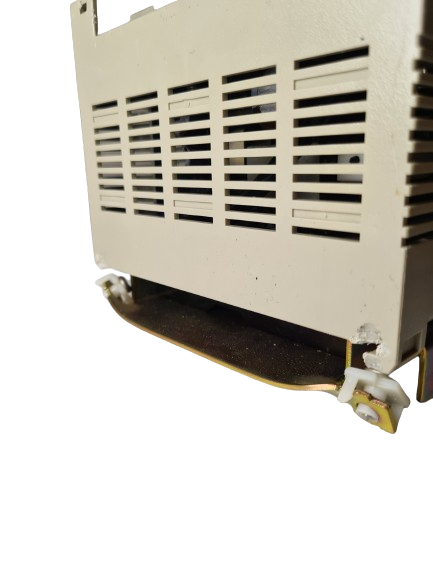

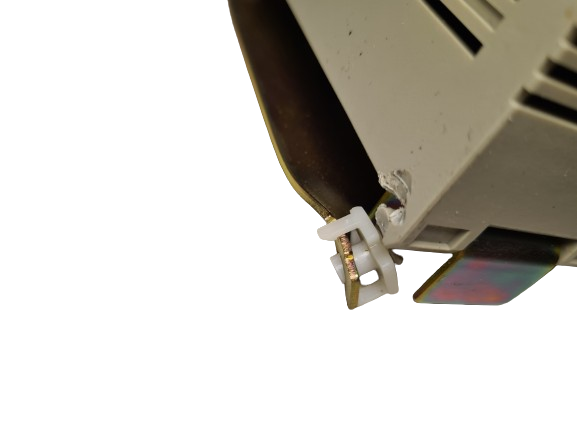

This item may have broken or missing parts. Please check pictures carefully — what you see is what you get. Please reach out with any questions before purchasing.
