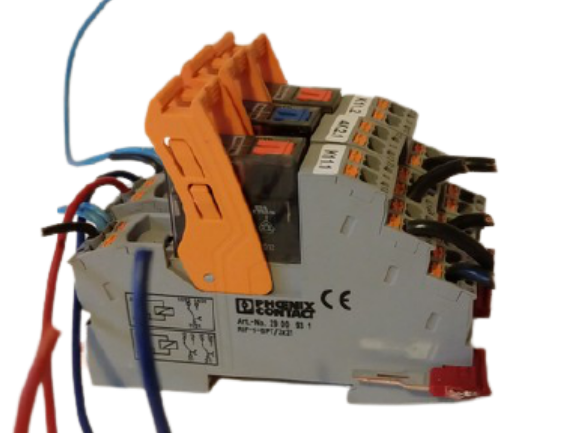

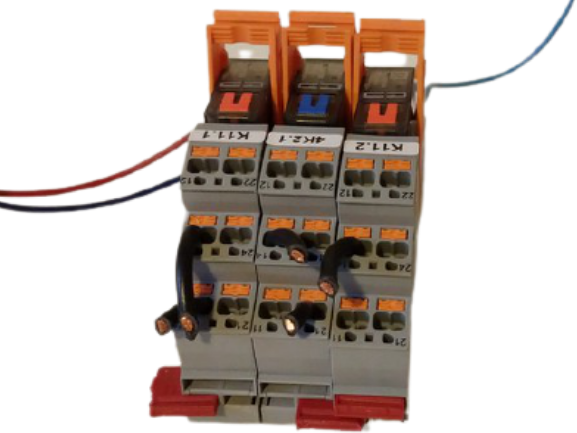

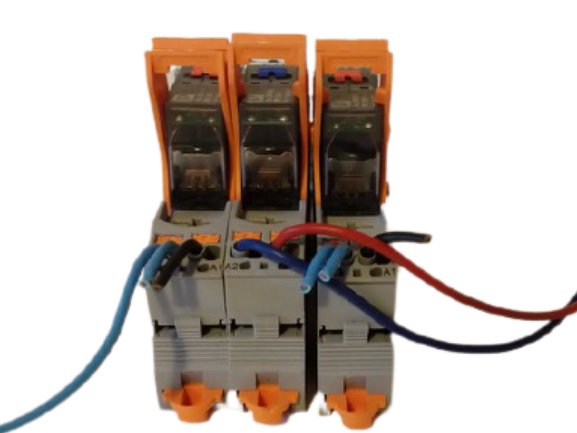

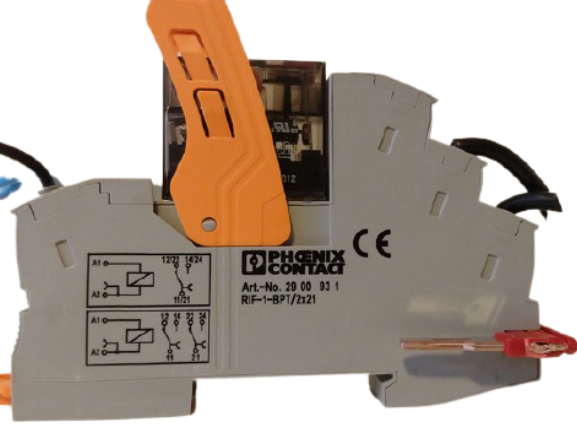

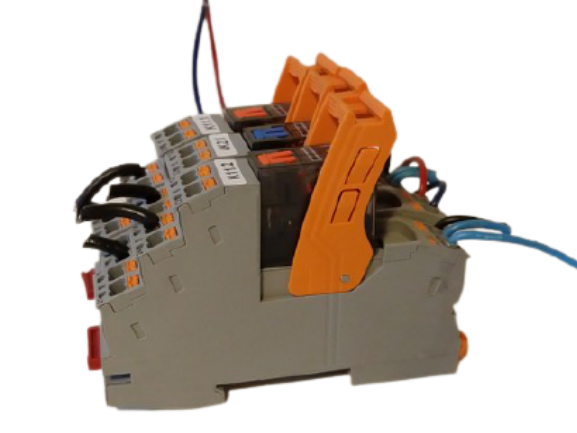

Phoenix Contact 3x Relay RIF-1-BPT/2x21

  • Phoenix Contact 3x Relay RIF-1-BPT/2x21
1 6

Phoenix Contact 3x Relay RIF-1-BPT/2x21

€10,00
€20,00
€10,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Phoenix Contact 3x Relay RIF-1-BPT/2x21Phoenix Contact 3x Relay RIF-1-BPT/2x21Phoenix Contact 3x Relay RIF-1-BPT/2x21Phoenix Contact 3x Relay RIF-1-BPT/2x21Phoenix Contact 3x Relay RIF-1-BPT/2x21
3x Phoenix Contact Relay RIF-1-BPT/2x21
Nominal input voltage UN 24 V DC
Input voltage range 19.2 V DC ... 33.6 V DC (20 °C)
Input voltage range in reference to UN see diagram
Typical input current at UN 18 mA
Typical response time 8 ms
Typical release time 10 ms
Coil voltage 24 V DC
Protective circuit Freewheeling diode
Contact type 2 changeover contacts
Type of switch contact Single contact
Drive and function monostable
Drive (polarity) bipolar
Contact material AgNi, hard gold-plated
Maximum switching voltage 30 V AC
36 V DC
Minimum switching voltage 100 mV (10 mA)
Limiting continuous current 50 mA
Maximum inrush current 50 mA
Min. switching current 1 mA (24 V)
Interrupting rating (ohmic load) max. 1.2 W (at 24 V DC)
Utilization category CB Scheme (IEC 60947-5-1) AC15, 1.5 A/240 V (N/O contact)
AC15, 2 A/250 V (N/C contact)
DC13, 2 A/24 V (N/C contact)
DC13, 0.2 A/250 V (N/O contact)
