Phoenix contact MCR-PT100/U temperature measurement sensor

  • Phoenix contact MCR-PT100/U temperature measurement sensor
  • Phoenix contact MCR-PT100/U temperature measurement sensor
  • Phoenix contact MCR-PT100/U temperature measurement sensor
  • Phoenix contact MCR-PT100/U temperature measurement sensor
1 5

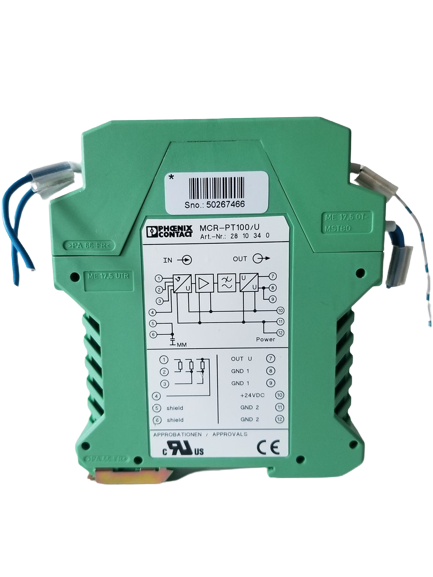

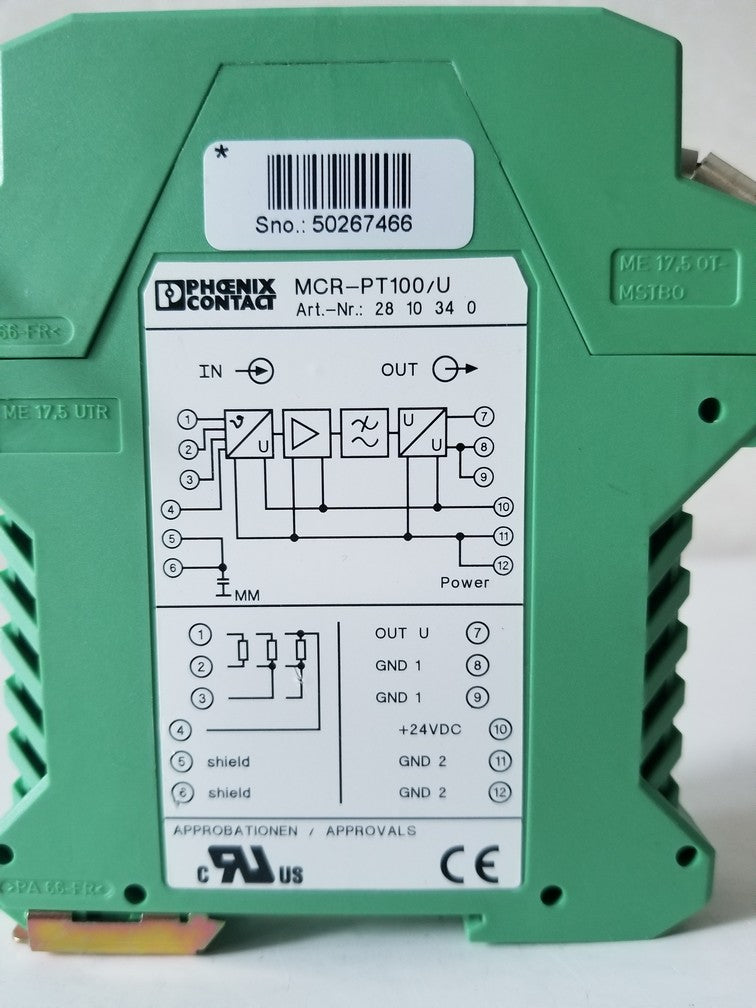

Phoenix contact MCR-PT100/U temperature measurement sensor

€180,00
€180,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Phoenix contact MCR-PT100/U temperature measurement sensor Phoenix contact MCR-PT100/U temperature measurement sensor Phoenix contact MCR-PT100/U temperature measurement sensor Phoenix contact MCR-PT100/U temperature measurement sensor

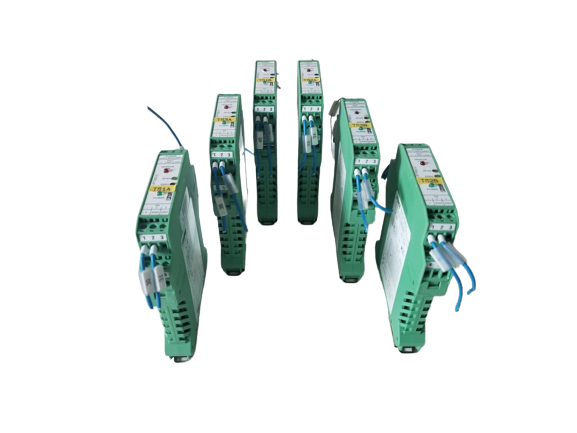

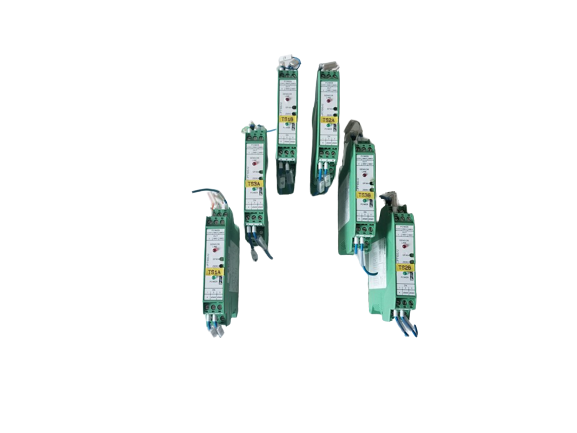

6x Phoenix Contact MCR-PT100/U temperature measurement sensor

Voltage output signal 0 V ... 10 V
Max. voltage output signal 15 V
Output voltage with wire break > 11 V
Load/output load voltage output ≥ 10 kΩ
Configurable/programmable Yes
Sensor types (RTD) that can be used Pt 100 (IEC 60751/EN 60751)
Temperature measuring range 0 °C ... 300 °C (0 ... 100/150/200/300)
-50 °C ... 250 °C (-50 ... 50/100/150/250)
Sensor type: -50 °C ... 50 °C (fixed setting)
-50 °C ... 100 °C (fixed setting)
-50 °C ... 150 °C (fixed setting)
-50 °C ... 250 °C (fixed setting)
0 °C ... 100 °C (fixed setting)
0 °C ... 150 °C (fixed setting)
0 °C ... 200 °C (fixed setting)
0 °C ... 300 °C (fixed setting)
Sensor input current approx. 1 mA
Connection technology 2-, 3-, 4-conductor
Connection method Pluggable screw connection
Connection method Screw connection
Stripping length 8 mm
Screw thread M3
Conductor cross-section solid 0.2 mm² ... 2.5 mm²
Conductor cross-section flexible 0.2 mm² ... 2.5 mm²
Conductor cross-section AWG 24 ... 14

price here is per lot
