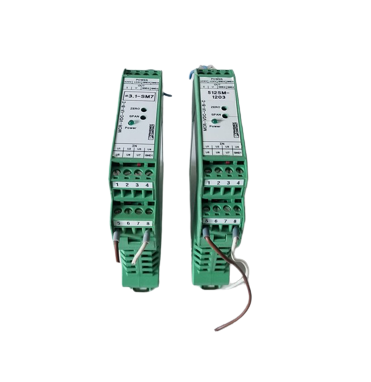

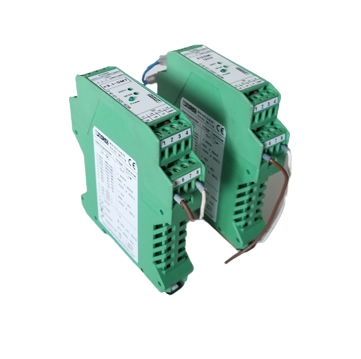

Phoenix Contact MCR-VDC-UI-B-DC Voltage Measuring Transducer — Lot of 2

Configurable DC voltage transducer, ±20V to ±660V, dual analog output

Overview

This lot is 2 units of the Phoenix Contact MCR-VDC-UI-B-DC (order no. 2811116), an MCR voltage measuring transducer that measures DC voltages across several signal ranges from 0 to ±20V DC up to 0 to ±660V DC and converts them into standardized analog output signals. DC voltages can be processed with both positive and negative polarity, and the input voltage ranges can be varied by ±20% using a calibration potentiometer. The unit ships calibrated by default to 0-±24V input and 0-±10V output, and is ready for operation on delivery. Note: this model is discontinued by Phoenix Contact, officially replaced by the MACX MCR-VDC (2906242).

Key Features

  • 3-way electrical isolation: Safe isolation between input, output, and supply circuits per EN 50178/VDE 0160.
  • True r.m.s. value measurement: Accurate measurement across the full range of input signal ranges.

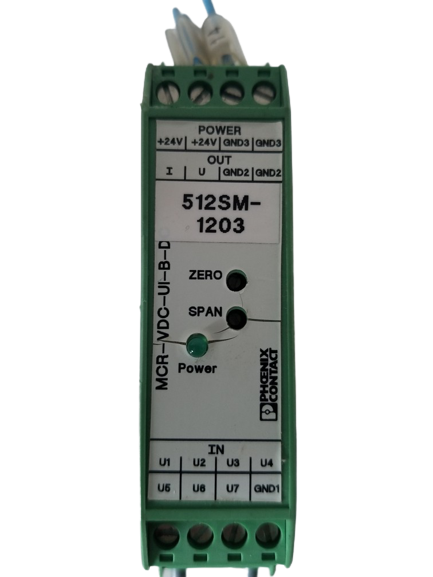

  • Adjustable voltage ranges: ZERO/SPAN adjustment of ±20% via front-panel potentiometer.
  • Dual output signal types: Simultaneous voltage output (-10V to 10V) and current output (-20mA to 20mA).
  • Wide selectable input ranges: From ±20V DC up to ±660V DC across multiple graduated ranges.
  • Bipolar signal handling: Processes DC voltages of both positive and negative polarity.

What's Included

Model Function Qty
MCR-VDC-UI-B-DC DC voltage measuring transducer 2

Order No.: 2811116. Discontinued by manufacturer; replaced by MACX MCR-VDC (2906242).

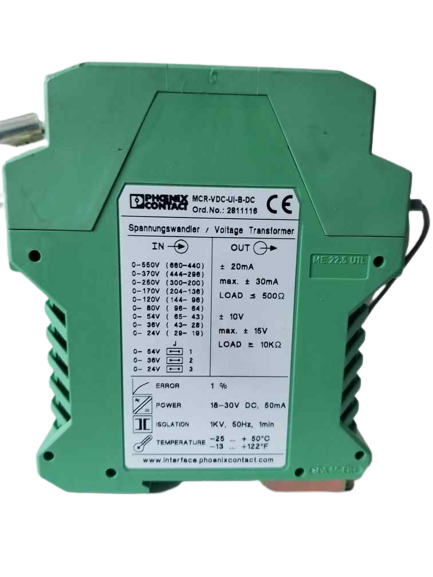

Technical Specifications

Input voltage ranges (input resistance): ±550V DC (550kΩ); ±370V DC (370kΩ); ±250V DC (250kΩ); ±170V DC (170kΩ); ±120V DC (120kΩ); additional ranges down to ±20V DC available.

Maximum input voltage: ±660V DC (ungrounded); ±100V DC (to earth).

Impulse form: DC voltage.

Voltage output signal: -10V to 10V; max. ±15V; output load >10kΩ; ripple <50 mVPP.

Current output signal: -20mA to 20mA; max. ±30mA; output load <500Ω; ripple <50 mVPP.

Supply voltage: 18.5-30.2V DC.

Accuracy: ±0.1% (up to ±1% depending on listing).

Operating temperature: -25°C to 50°C.

Dimensions: 22.5mm (W) x 99mm (H) x 114.5mm (D).

Compatibility & Applications

Part of Phoenix Contact's MCR voltage measuring transducer range, this unit is well suited to industrial process monitoring and control applications requiring DC voltage measurement conversion into standard analog signals for PLC or control system integration.
