Planet Technology POE-175-95 Single-Port 802.3bt PoE++ Injector, 95W

Gigabit Ultra PoE injector with internal power supply for high-power network devices

Overview

This is a Planet Technology POE-175-95, a single-port, 802.3bt Power over Ethernet injector delivering up to 95 watts of power output over Ethernet cables. Using all four pairs of standard Cat.5e/Cat.6 cabling, it supplies 54V DC power alongside Gigabit Ethernet data to devices that need higher PoE power than standard 802.3af/at can provide — such as PTZ speed dome cameras, digital signage displays, thin clients, and all-in-one touch PCs.

Key Features

  • Up to 95W of PoE power: Delivers high-power output using all four pairs of Ethernet cabling, well beyond standard 802.3af (15.4W) or 802.3at (30W) limits.
  • Full 802.3bt PoE++ standard support: Backward compatible with 802.3af/at devices, plus support for UPoE and Legacy BT modes via DIP switch selection.
  • Plug-and-play installation: No software configuration required — simply connect the Ethernet cables and AC power cord to begin operation.

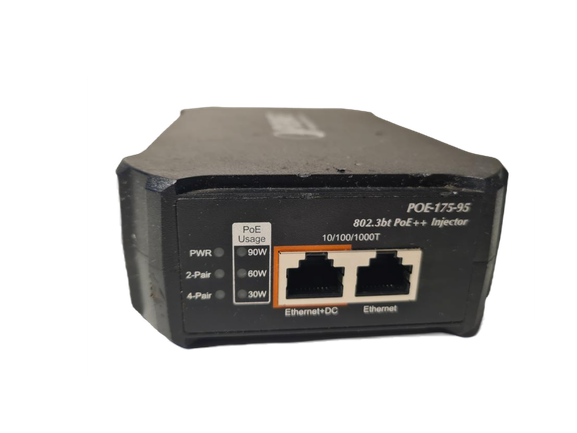

  • Real-time PoE usage monitoring: Three power-usage LED indicators let administrators monitor connected powered device (PD) load status at a glance.
  • Compact housing with internal power supply: Built-in AC-to-DC conversion in a compact enclosure, simplifying installation without an external power brick.
  • Gigabit data rate support: Passes 10/100/1000Mbps Ethernet data alongside power over a single cable run.

What's Included

Model Function Qty
POE-175-95 Single-port 802.3bt PoE++ injector, 95W 1

Technical Specifications

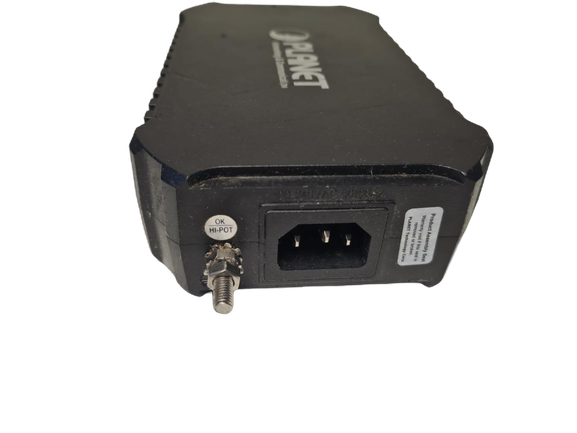

Interfaces: 1x RJ45 STP Data In; 1x RJ45 STP PoE (Data + Power) Out; 1x AC input socket.

Data rate: 10/100/1000Mbps.

PoE output: DC 54V, up to 95W via 4-pair; 95W max @ 1m cable.

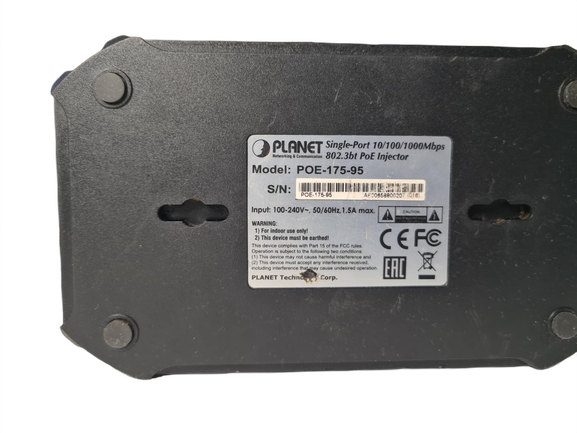

Power requirements: AC 100-240V, 1.8A max.

Power consumption: Max. 1W (no load) / 111W (full load).

Devices powered: 1.

Dimensions / weight: 170 x 100 x 40 mm; 443g.

Operating / storage temperature: 0-50°C operating; -10-70°C storage.

Compatibility & Applications

Compatible with any 802.3af/at/bt-standard powered device, and pairable with Planet's Ultra PoE Splitter (POE-172S/173S) to provide selectable 12V/19V/24V DC outputs at distances up to 100m. It's well suited to PoE lighting, PTZ security cameras, digital signage, thin clients, and other network equipment requiring higher power than standard PoE can deliver.
