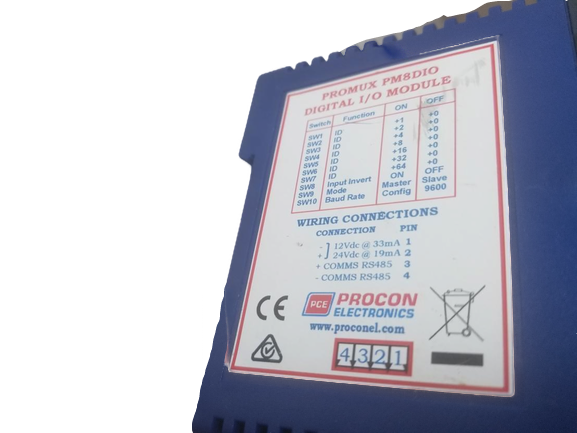

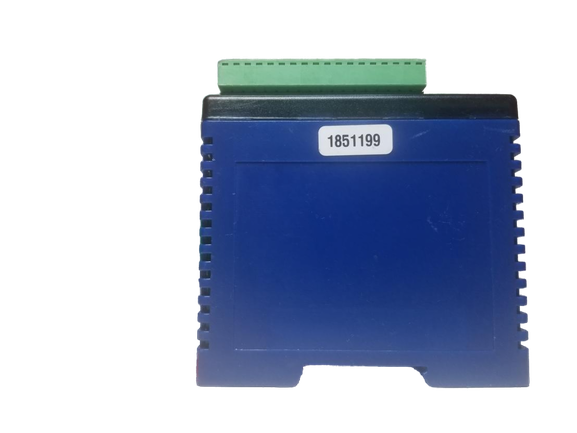

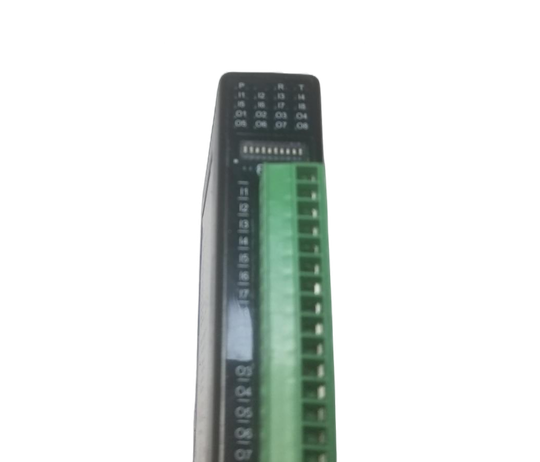

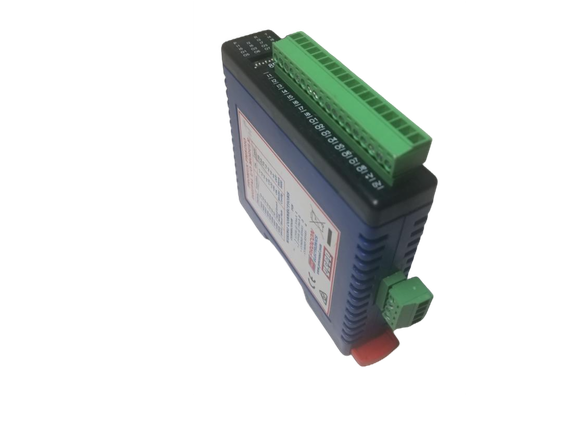

PM8DIO - 8 Digital Input/ Output Module

Regular price
€80,00
Regular price
Sale price
€80,00
PM8DIO - 8 Digital Input/ Output ModulePM8DIO - 8 Digital Input/ Output ModulePM8DIO - 8 Digital Input/ Output ModulePM8DIO - 8 Digital Input/ Output ModulePM8DIO - 8 Digital Input/ Output ModulePM8DIO - 8 Digital Input/ Output Module
PM8DIO - 8 Digital Input/ Output Module Digital Inputs8
Digital Counters
Counter Resolution32 Bit
Counter frequency1 KHz (max)
Pulse width 500usec (min)
Counter Mode UP or UP/DOWN
Digital input 0 level 0 to +6.5Vdc
Digital input 1 level +12Vdc to +24Vdc
Input Impedance 2200 ohms
Input filter Max 6553 msec.
Status Indication inputs LED per channel
Digital Outputs 8
Type NPN Open collector
Max Load Current 100mA per channel
Max load Voltage 36Vdc
Vce (on) Voltag 1.1V (max)
Isolation (Field & Logic) 1500VAC RMS
Watch dog output timer Disable or 1-255 sec adjustable
Isolation (Field & Logic) 1500 V RMS Status Indication output LED per channel
Power supply (Field) +12Vdc to +24Vdc
