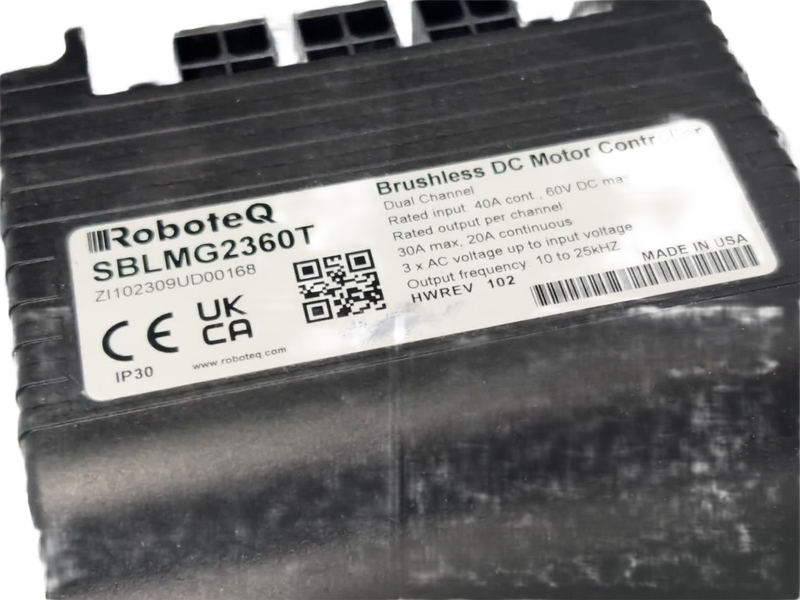

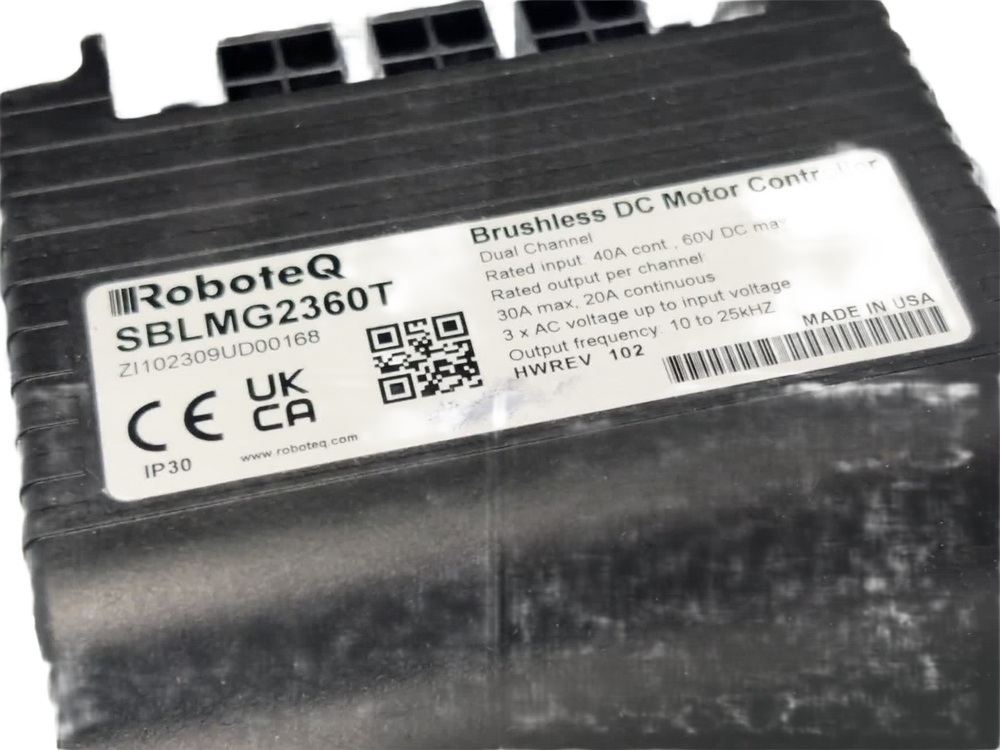

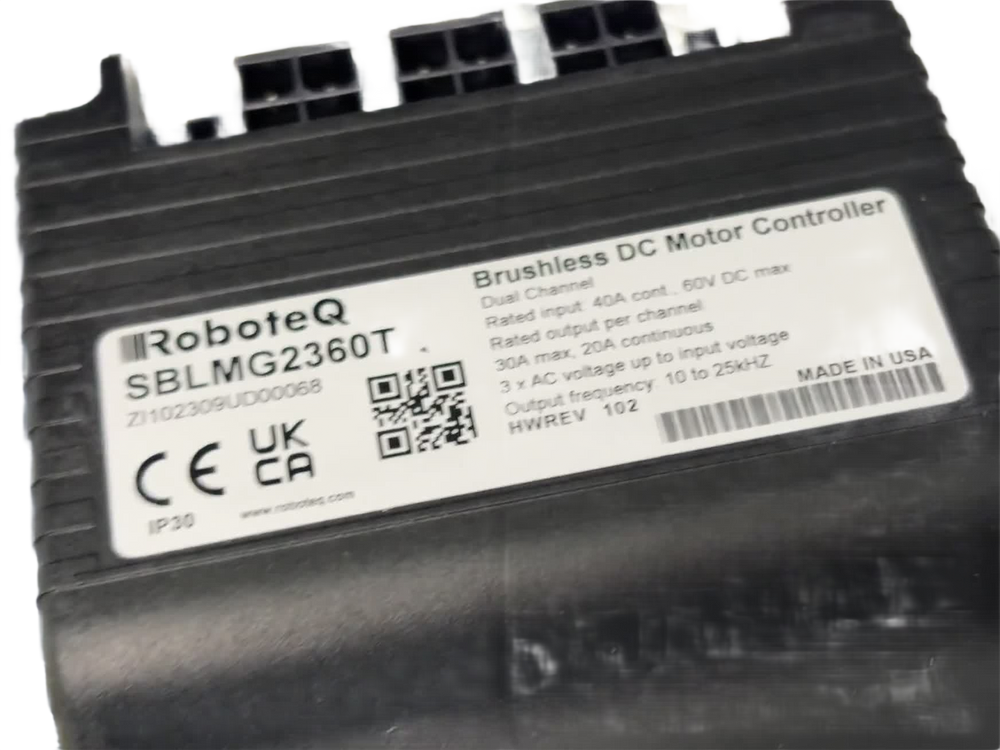

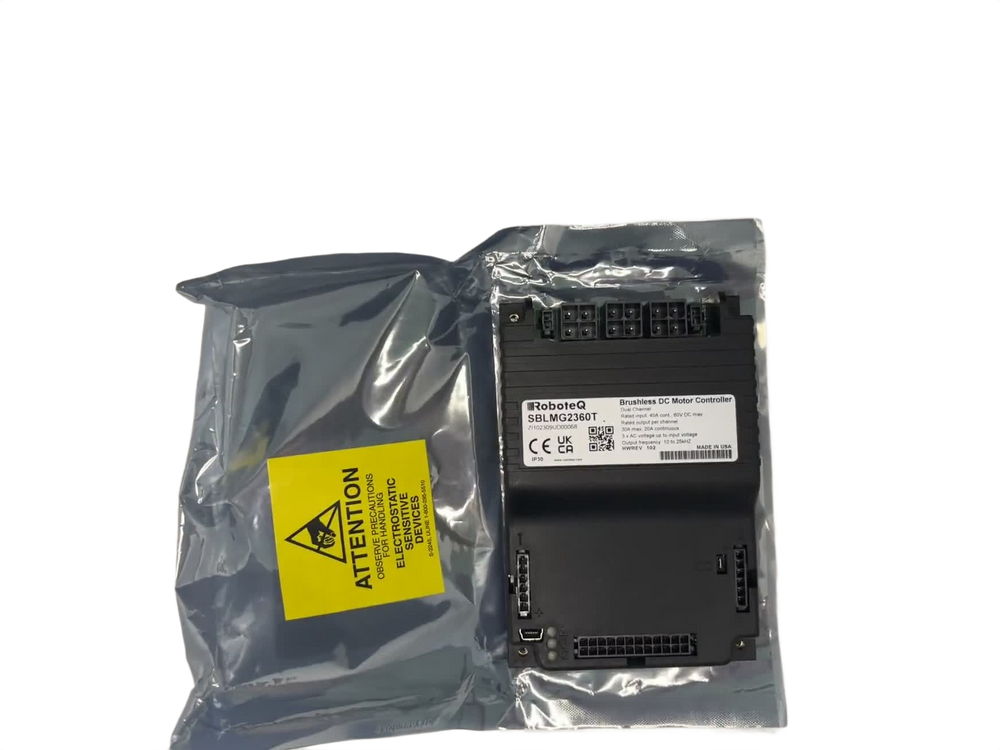

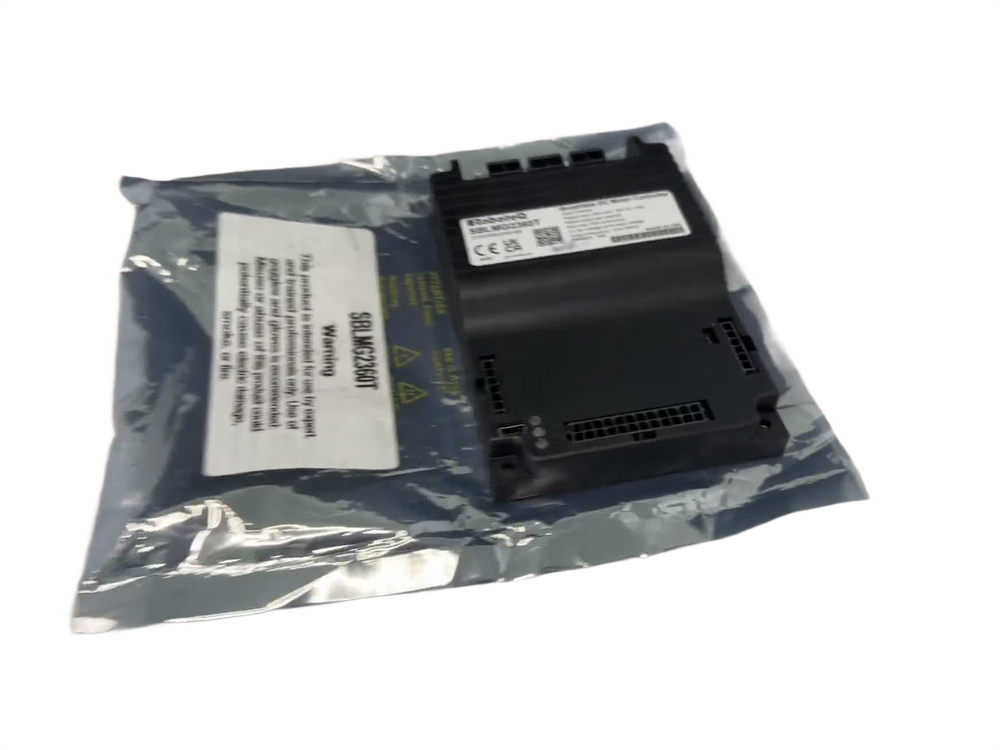

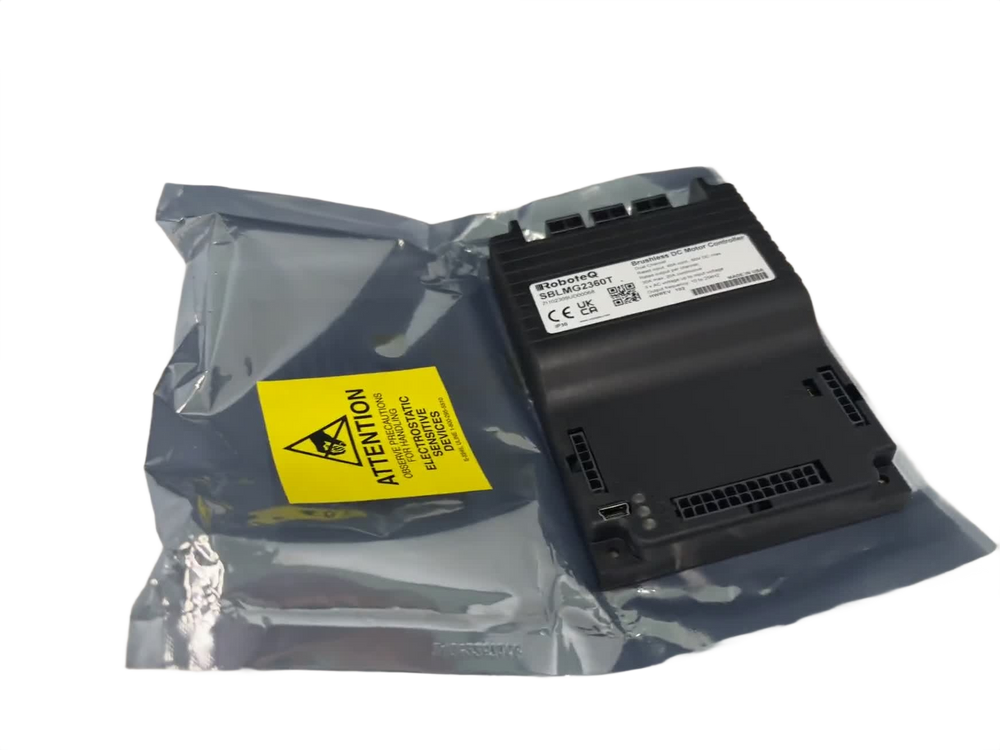

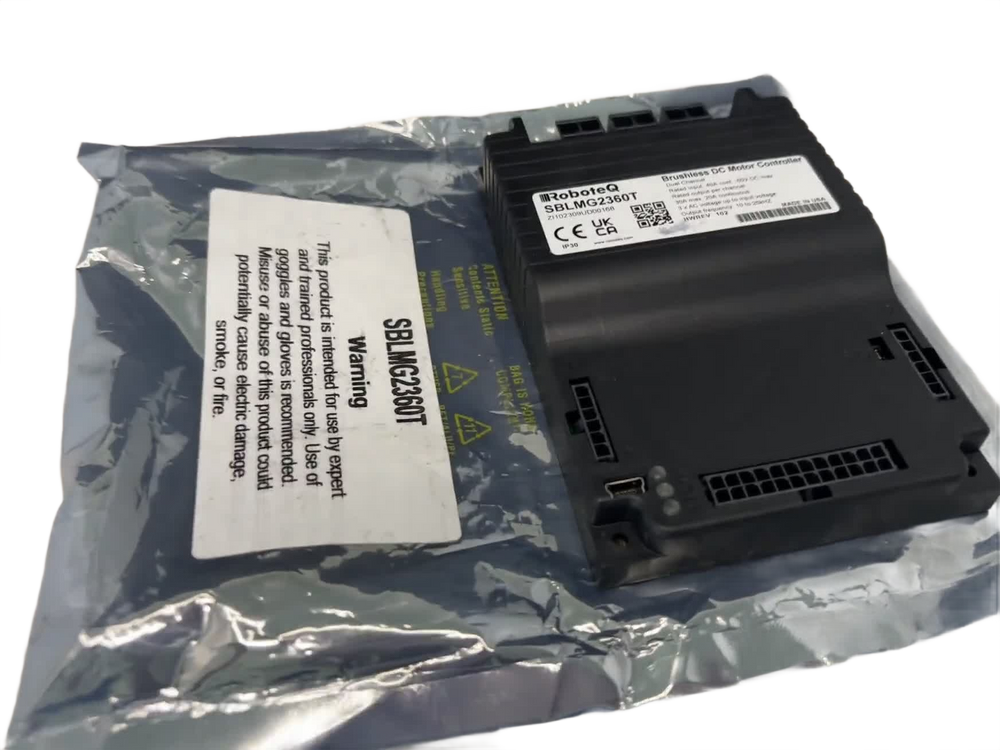

RoboteQ SBLMG2360T Dual Channel Brushless DC Motor Controller — 60V DC Max, 30A Max

Gen4 high-performance controller with functional safety (STO) for brushless DC motors

Overview

This is a RoboteQ SBLMG2360T, a Gen4 (RoboG4) high-current, dual-channel controller for brushless DC motors, and a direct replacement for RoboteQ's earlier SBLM23xx series. Built on a 4th-generation processor, it brings performance, algorithmic, and functional-safety improvements over the standard SBL23xx line, including integrated Safe Torque Off (STO). The controller supports a wide selection of rotor position sensor types to generate smooth, continuous motor rotation, and can be commanded via serial, USB, analog, or pulse signals, with multiple controllers networkable over low-cost twisted-pair CAN bus.

Key Features

  • Dual-channel Gen4 architecture: Drives two brushless DC motors, each rated 20A continuous, 30A for 30 seconds, and 45A peak for 2 seconds, at up to 60V.
  • Functional safety — Safe Torque Off (STO): Certified to PLe, Category 3, SIL3, providing certified safe motor shutdown for applications with functional-safety requirements.
  • Field Oriented Control (FOC): Supports both Trapezoidal and Sinusoidal commutation with FOC, plus acceleration/velocity feed-forward and fast loop frequency for precise speed, torque, or position control.
  • Broad rotor sensor support: Compatible with Encoder, Hall sensor, Sin/Cos, and SSI feedback types, covering most common motor sensor configurations.
  • Extensive I/O and connectivity: Up to 8 analog inputs, 10 digital inputs, 4 digital outputs, and 8 pulse inputs; communication via RS232, RS485, USB, and CAN bus, using Molex connectors for power and signal wiring.
  • Scriptable, field-reprogrammable operation: Fully automatable and customizable with Basic Language scripts, configured and tuned in real time using RoboteQ's free PC utility, with field firmware updates available from RoboteQ.

What's Included

Model Function Qty
SBLMG2360T Gen4 dual channel brushless DC motor controller, STO safety 1

CE Certified | UKCA Marked | Made in USA

Technical Specifications

Motor type: Brushless DC, dual channel, Gen4 design.

Max voltage: 60V DC max.

Current rating: 30A max per channel; 20A continuous per channel; 45A peak (2 s) per channel.

Communication: RS232, RS485, USB, CAN bus.

Rotor sensors: Encoder, Hall, Sin/Cos, SSI.

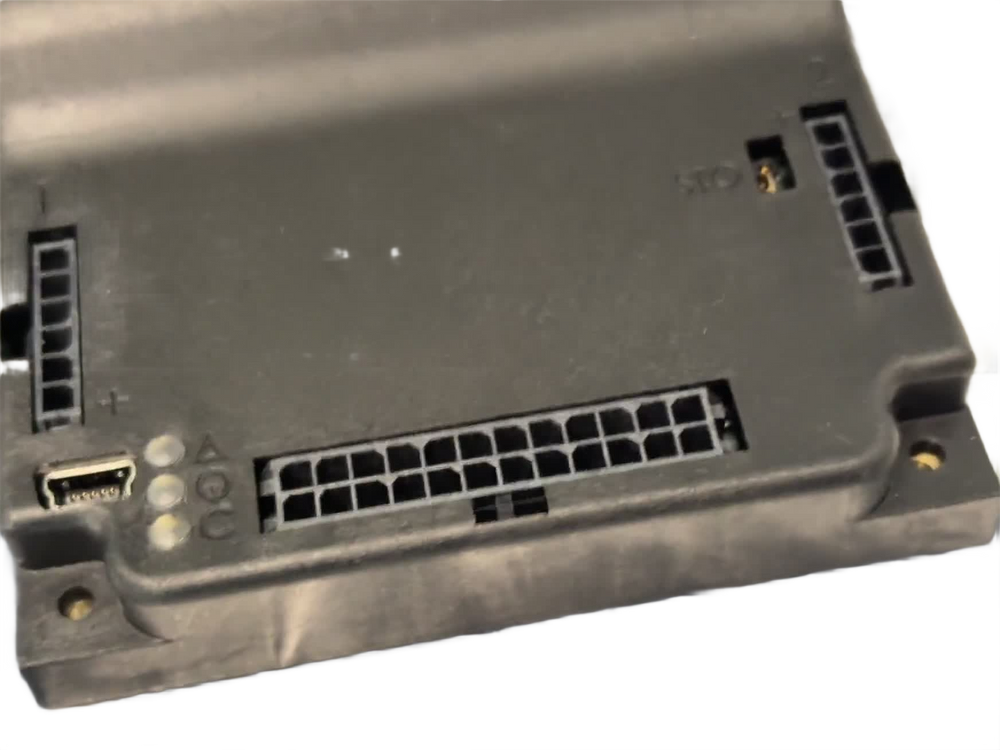

I/O: Up to 8 analog inputs, 10 digital inputs, 4 digital outputs, 8 pulse inputs; Molex power/signal connectors.

Functional safety / cooling / compliance: Safe Torque Off (STO), PLe Cat3 SIL3; conduction cooling plate; CE and UKCA marked.

Compatibility & Applications

The SBLMG2360T is aimed at high-current brushless DC motor applications where certified functional safety matters, including AGVs, mobile and industrial robots, electrical transportation systems, and other automation platforms. Its CAN bus networking allows multiple controllers to be coordinated across a single system, and its broad sensor and connectivity support make it a drop-in replacement for designs previously using RoboteQ's SBLM23xx series.
