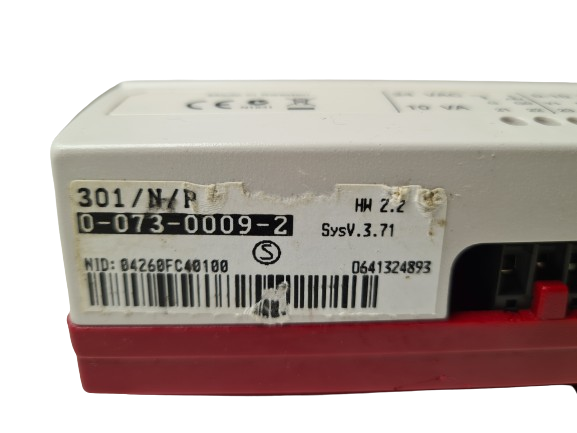

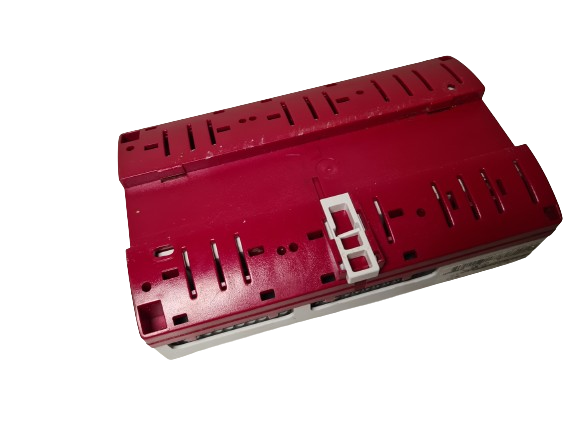

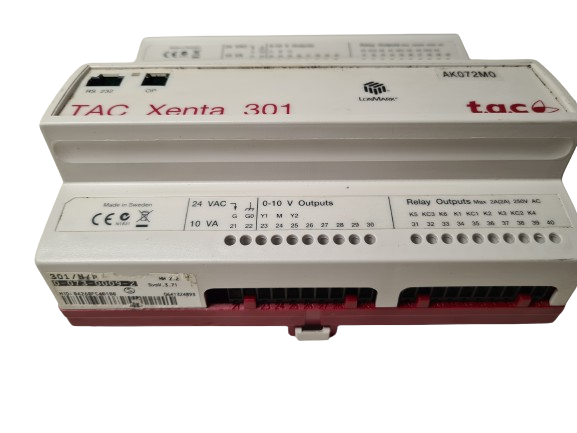

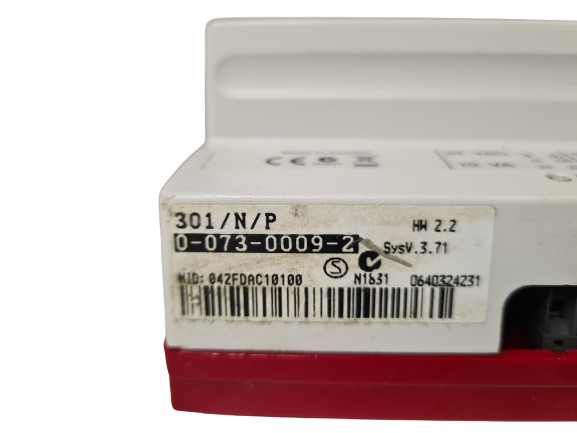

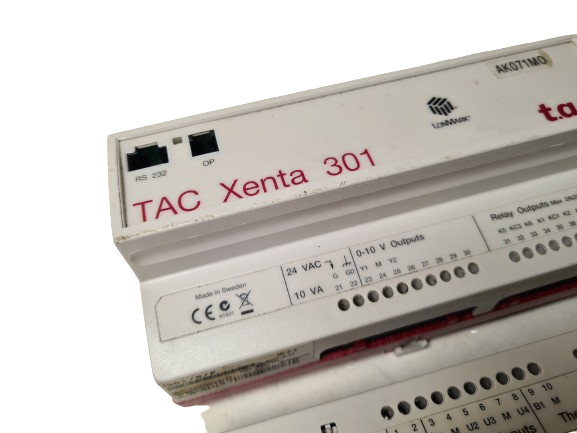

Schneider Electric TAC Xenta 301 0-073-0009-2 Controller

Regular price
€300,00
Regular price
Sale price
€300,00
Schneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 Programmable ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 Programmable ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 Programmable ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 ControllerSchneider Electric TAC Xenta 301  0-073-0009-2 Controller

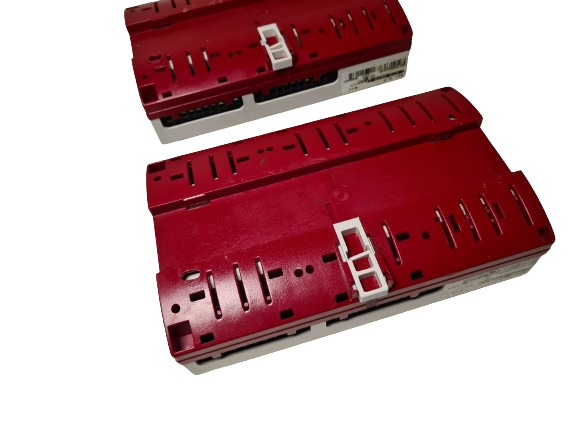

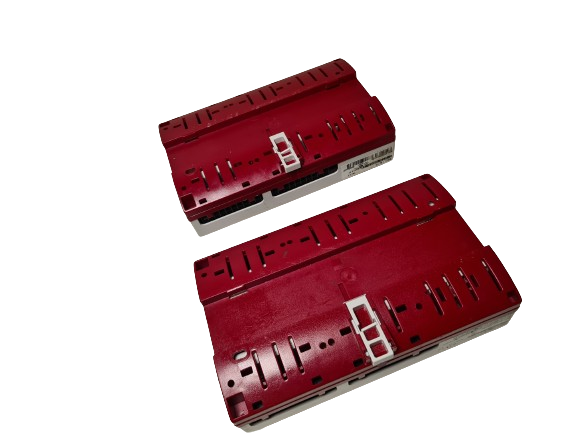

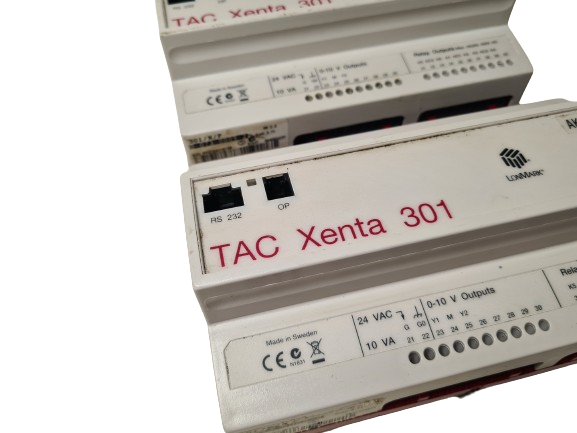

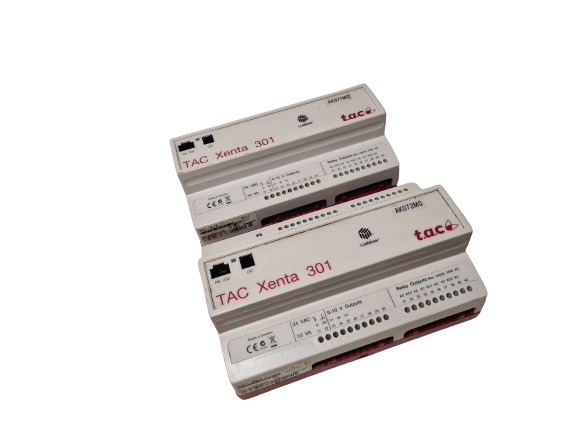

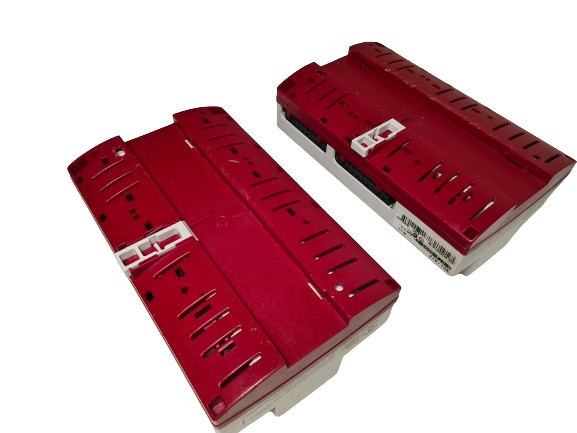

2x Schneider Electric TAC Xenta 301 0-073-0009-2 Controller

Supply Voltage   24 V AC ±20%, 50/60 Hz
Power Consumption  5 W
Transformer Sizing 10 VA
Humidity max. 90% RH non-condensing
Enclosure rating   IP 20
Dimensions, mm (in.)  180 x 110 x 75 (7.1 x 4.3 x 3.0)
Weight  1,0 kg (2.2 lbs)
Digital Inputs (X1–X4):
Quantity  4
Voltage across open contact  33 V DC
Current through closed contact  4 mA
Universal Inputs (U1–U4):
Quantity  4 – as Digital Inputs;
Voltage across open contact  26 V DC
Current through closed contact   4 mA
Input signal  0–10 V DC
Sensor Inputs (B1–B4)
Quantity  4
Digital Outputs (relays; K1–K6 or K1–K4):
Quantity  6
Control voltage, relay outputs 250 V AC
Control current, to be protected by max. 10 A fuse,  max. 2 A
Analog Outputs (Y1–Y2 or Y1–Y4):
Quantity 2
Control voltage  0–10 V DC
Control current, short-circuit proof  max. 2 mA

The price here is per Lot
