Schneider Electric TAC Xenta 451A Universal Input and Analog Output Module

Regular price
€350,00
Regular price
Sale price
€350,00
Schneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output ModuleSchneider Electric TAC Xenta 451A Universal Input and Analog Output Module

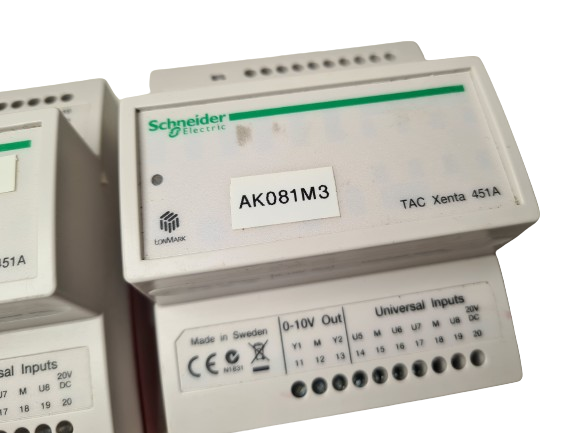

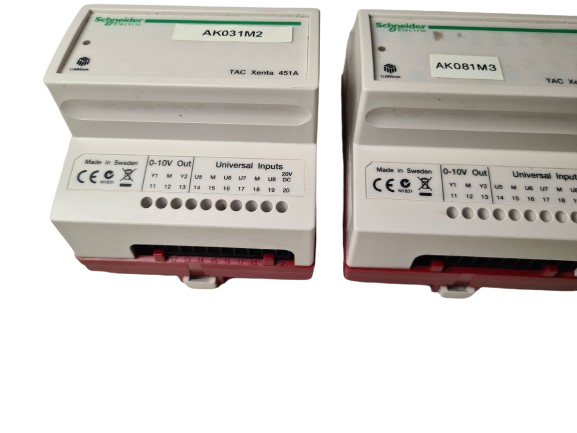

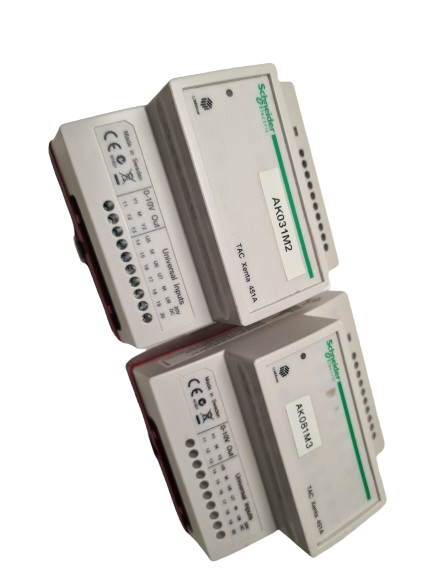

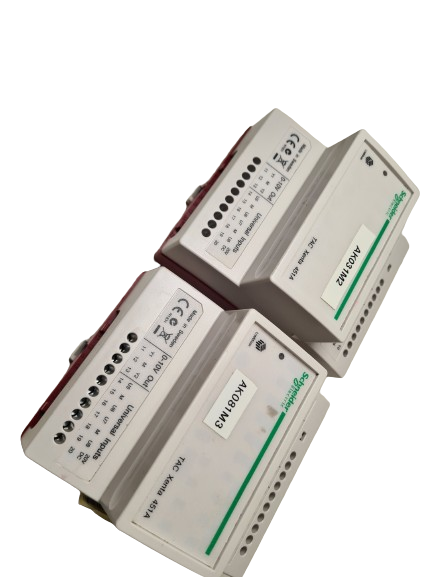

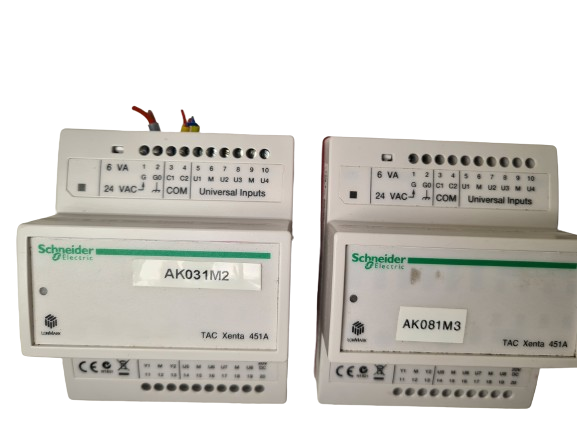

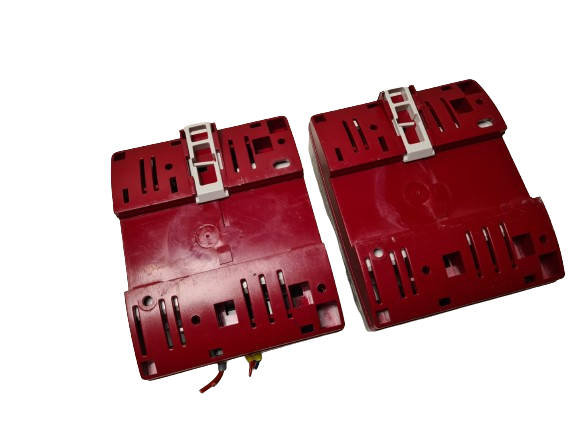

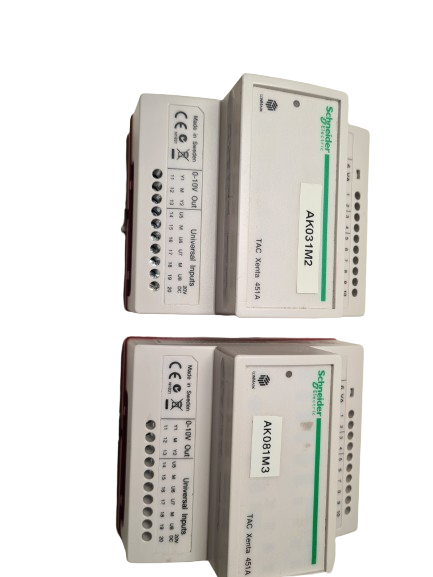

2x Schneider Electric TAC Xenta 451A Universal Input and Analog Output Module

Supply voltage (G, G0) 24 V AC ±20%, 50/60 Hz 21.6–40 V DC
Power consumption max. 3W
Transformer sizing  6 VA
Universal inputs (U1–U8):
Quantity 8
A/D-resolution  12 bits
–as Digital Inputs;
Voltage across open contact  20 V DC
Current through closed contact  3 mA
Pulse input duration (TAC Menta CNT block) min. 80 ms
–as Thermistor Inputs;
TAC thermistor sensor  1800 ohms at 25 °C (77 °F)
Supply voltage 1 V DC
or (individually selectable)
TAC thermistor 10 kohms at 25 °C (77 °F)
Supply voltage  5 V DC
Measuring range –50 °C to +150 °C (–58 °F to 302 °F)
–as Current Inputs;
Input signal (terminals U–M; over-current protected) 0–20 mA
Input resistance  47 ohm
Inaccuracy within ± (7 mV +0.4 % of reading)
Power supply for one 2-wire 4–20 mA transmitter 20 V DC/25 mA
–as Voltage Inputs;
Input signal 0–10 V DC
Input resistance  >100 kohm

The price here is per Lot
