Siemens Simatic S7 6ES7 138-4CA01-0AA0

Regular price
€450,00
Regular price
Sale price
€450,00
Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0Siemens Simatic S7 6ES7 138-4CA01-0AA0

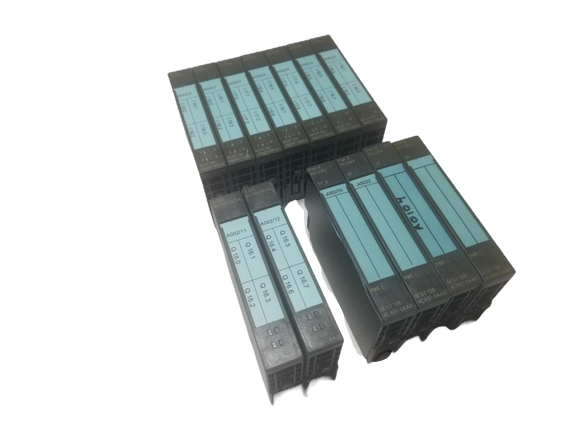

4x Siemens Simatic S7 6ES7 138-4CA01-0AA0
DISCONTINUED BY MANUFACTURER / PHASE-OUT SINCE 10/01/2020
PM-E POWER MODULE
SIMATIC DP
4 MA
10 AMP
0.1 W
24 VDC
W/ DIAGNOSTICS

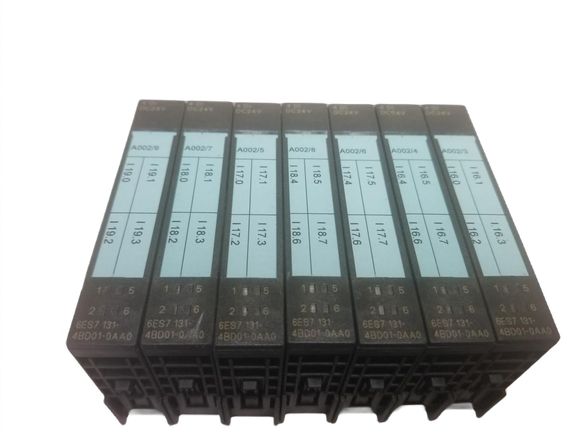

FOR ET 200S 7x Siemens Simatic S7 6ES7131-4BD01-0AA0
Supply voltage
Rated value (DC) 24 V; From power module
Reverse polarity protection Yes
Input current
from supply voltage L+, max. Dependent on encoder
from backplane bus 3.3 V DC, max. 10 mA
Encoder supply
Type of output voltage min. L+ (-0.5 V), under load
Output current
● Rated value 500 mA
● permissible range, lower limit 0 mA
● permissible range, upper limit 500 mA
Power loss
Power loss, typ. 0.7 W
Address area
Address space per module
● Address space per module, max. 1 byte
● with packing 4 bit
Digital inputs
Number of digital inputs 4
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Input voltage
● Type of input voltage DC
● Rated value (DC) 24 V
● for signal "0" -30 to +5 V
● for signal "1" +15 to +30 V
Input current
● for sigal "1", typ. 7 mA; at 24 V 2x Siemens Simatic S7 6ES7132-4BD02-0AA0 Supply voltage
Reverse voltage protection Yes; when using the same load voltage as on the power module
Load voltage L+
● Rated value (DC) 24 V; From power module
● Reverse polarity protection Yes; polarity reversal can lead to the digital outputs being connected through
Input current
from load voltage L+ (without load), max. 10 mA; Per channel
from backplane bus 3.3 V DC, max. 10 mA
Power loss
Power loss, typ. 0.8 W
Address area
Address space per module
● Address space per module, max. 1 byte
● with packing 4 bit
Digital outputs
Type of digital output Source output (PNP, current-sourcing)
Number of digital outputs 4
Short-circuit protection Yes
● Response threshold, typ. 1 to 1.5 A
Limitation of inductive shutdown voltage to L+ (-55 to -60 V)
Controlling a digital input Yes
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
● lower limit 48 Ω
● upper limit 3 400 Ω
Output voltage
● for signal "1", min. L+ (-1 V)
Output current
● for signal "1" rated value 0.5 A
● for signal "1" permissible range, min. 7 mA
● for signal "1" permissible range, max. 600 mA
● for signal "0" residual current, max. 0.3 mA
Output delay with resistive load
● "0" to "1", max. 50 µs
● "1" to "0", max. 120 µs
