ST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation Board

€120,00
€120,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
ST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation BoardST Microelectronics STM3220G-EVAL STM32 20-21-45-46 G-EVAL Evaluation Board

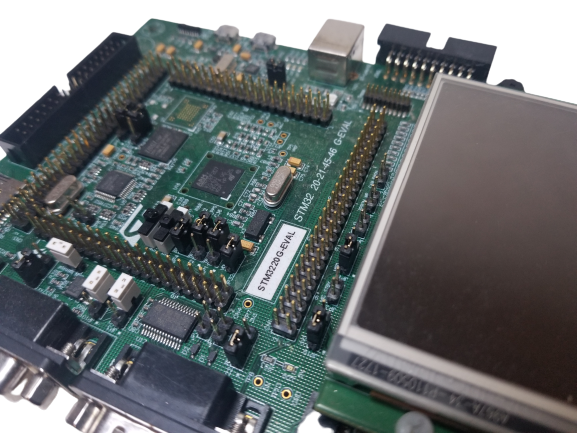

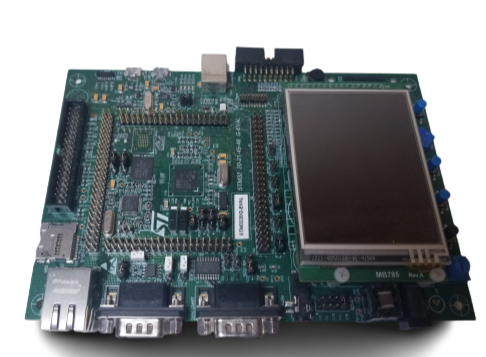

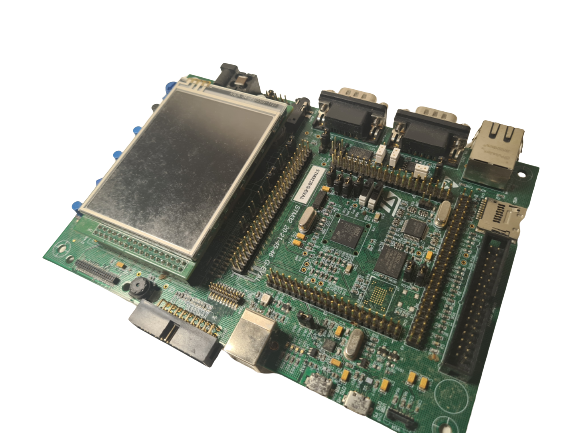

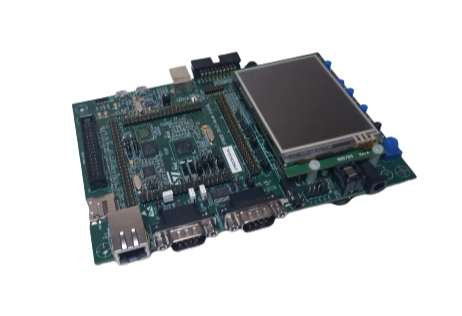

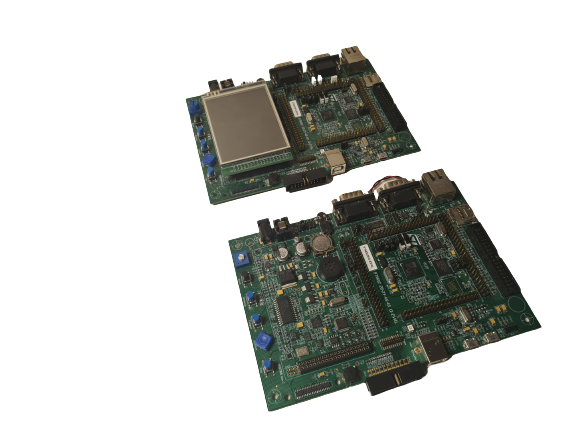

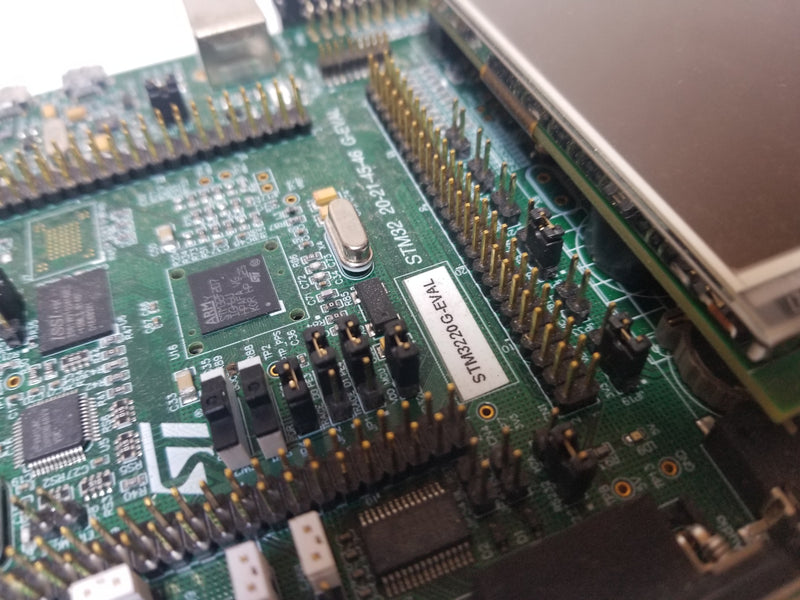

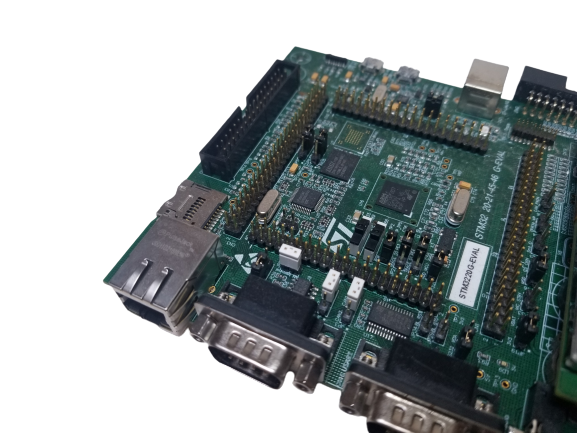

ST Microelectronics STM3220G-EVAL STM32 Evaluation Board

Full-featured evaluation board for STM32F20x/21x/40x/41x microcontroller development

Overview

This is an ST Microelectronics STM3220G-EVAL evaluation board, designed for developing and testing applications on the STM32 20/21/45/46 series microcontrollers, with a comprehensive set of onboard peripherals and connectivity options.

Key Features

  • Memory: 16-Mbit SRAM, support for 1-Gbyte or more microSD card, boot from user Flash memory, system memory, or SRAM.
  • Smartcard support: Both ISO/IEC 14443 type A and B.
  • Peripherals: I2C compatible 64-Kbit serial interface EEPROM, ST MEMS, and I/O expander.
  • Connectivity: IEEE 802.3-2002 compliant Ethernet connector, two CAN 2.0 A/B channels on the same DB connector, RS-232 communication, IrDA transceiver, USB OTG (HS and FS) with Micro-AB connector.
  • Display and input: 3.2" 240x320 TFT color LCD with touch screen, joystick with 4-direction control and selector, 4-color LEDs.
  • Audio: I2S audio DAC, stereo audio jack for headset.
  • Motor control: Inductor motor control connector.
  • Camera support: Camera module and extension connector for ST camera plug-in.
  • Debugging: JTAG, SW and trace debug support, embedded ST-LINK/V2.
  • Buttons and timing: Reset, wakeup, tamper, and user button; RTC with backup battery.
  • Expansion: Extension connector for daughterboard or wrapping board.
  • Power supply options: Five 5V options: power jack, USB FS connector, USB HS connector, ST-LINK/V2, or daughterboard.

What's Included

Model Function Qty
STM3220G-EVAL STM32 Evaluation Board 1

Brand: ST Microelectronics | Part Status: Active

Compatibility & Applications

This evaluation board is well suited to embedded systems development requiring extensive connectivity, display, and debugging support for STM32F20x/21x/40x/41x series microcontrollers. Buyers should confirm compatibility with their target STM32 device family before purchasing.
