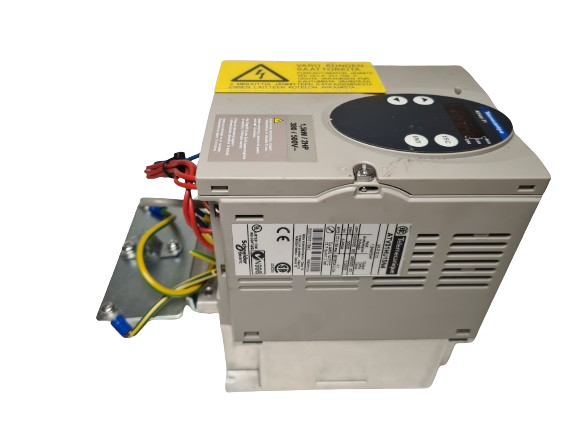

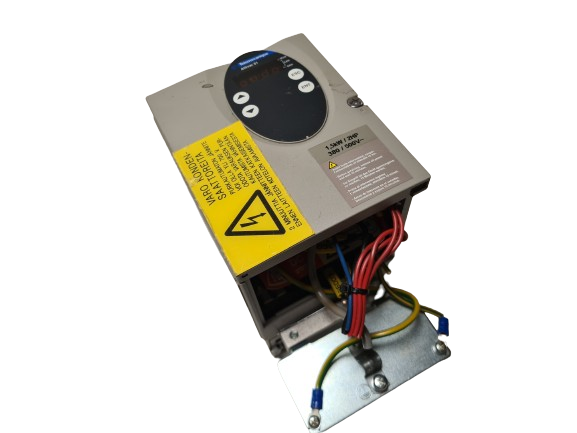

Schneider Electric Telemecanique Altivar31 ATV31HU15N4 Variable speed Drive 1.5kW 500V

€250,00
€250,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Schneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500VSchneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable speed Drive 1.5kW 500V

Schneider Electric Telemecanique Altivar 31 ATV31HU15N4 Variable Speed Drive, 1.5kW, 500V

Compact three-phase AC drive for simple machine applications

Overview

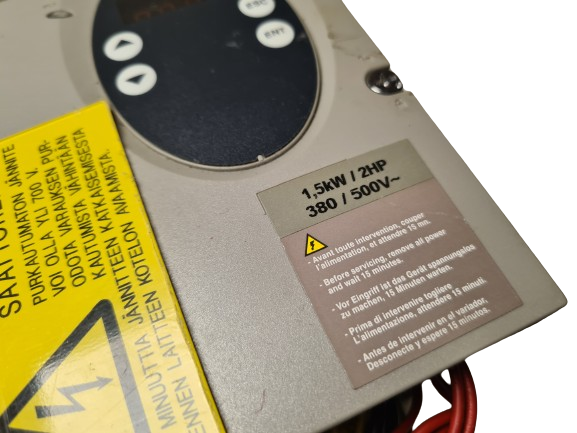

This is a Schneider Electric (Telemecanique) Altivar 31 ATV31HU15N4, a 1.5kW variable speed AC drive designed for simple machine applications driving three-phase asynchronous motors up to 500V. Built with an integrated heat sink for reliable heat dissipation and an integrated EMC filter, it's suited to conveyor belts, fans, pumps, and other general industrial motor speed control tasks requiring precise, adjustable output.

Key Features

  • Compact heat-sink assembly: Integrated heat sink supports continuous operation with stable thermal performance, even in demanding settings.
  • Integrated EMC filter: Built-in filtering helps meet electromagnetic compatibility requirements without additional external components.
  • Wide supply voltage tolerance: Accepts 380-500V (-5%/+5%) three-phase supply, adaptable to varied international power conditions.
  • Flexible I/O: Two analog outputs and two discrete outputs, easing integration with external control systems, sensors, or indicators.
  • Adjustable switching frequency: 4 kHz nominal switching frequency, with a 0.0005–0.5 kHz adjustable output frequency range for precise speed control.
  • IP20 protection: Suited to standard control cabinet installations.

What's Included

Model Function Qty
ATV31HU15N4 Variable speed AC drive, 1.5kW 1

Note: the Altivar 31 series has been discontinued by Schneider Electric; the Altivar 312 series is the current replacement product line.

Technical Specifications

Power rating: 1.5 kW.

Supply voltage: 380–500V (-5%/+5%), 3-phase.

Apparent power: 4.2 kVA.

Output current: 4.1 A @ 4 kHz.

Power dissipation: 61W at nominal load.

Output frequency range: 0.0005–0.5 kHz.

Switching frequency: 4 kHz.

I/O: 2 analog outputs, 2 discrete outputs.

Protection / filter: IP20; integrated EMC filter.

Compatibility & Applications

Designed for asynchronous three-phase motors in simple machine applications, the ATV31HU15N4 is well suited to conveyor belts, fans, pumps, and other general industrial equipment requiring adjustable-speed motor control with robust reliability.
