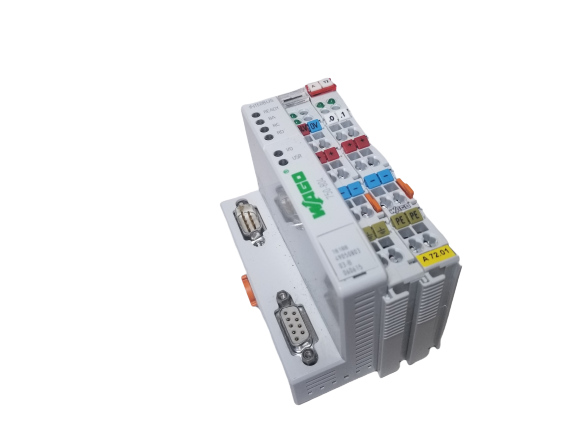

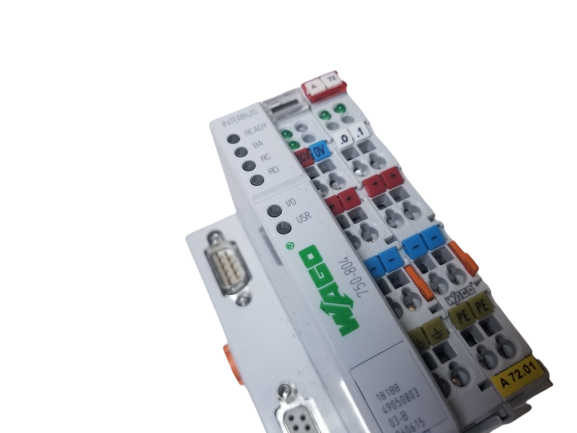

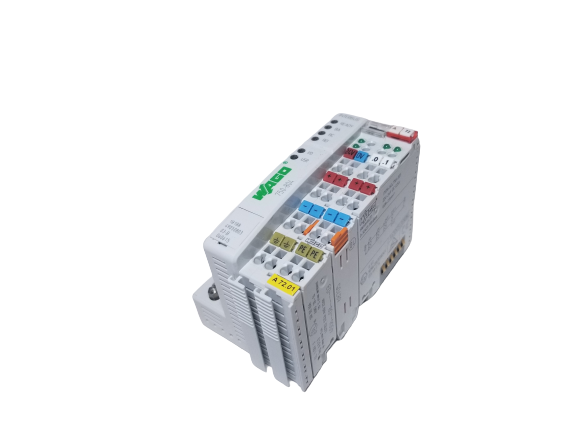

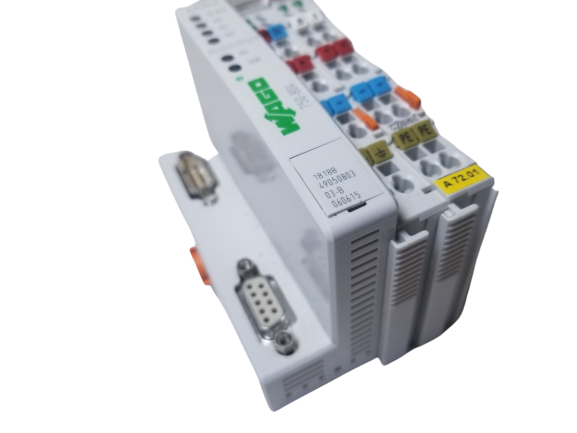

WAGO 750-804 750-501 Programmable Logic Controller

  • WAGO 750-804 750-501 Programmable Logic Controller
  • WAGO 750-804 750-501 Programmable Logic Controller
  • WAGO 750-804 750-501 Programmable Logic Controller
  • WAGO 750-804 750-501 Programmable Logic Controller
  • WAGO 750-804 750-501 Programmable Logic Controller
1 6

WAGO 750-804 750-501 Programmable Logic Controller

€150,00
€150,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
WAGO 750-804 750-501 Programmable Logic ControllerWAGO 750-804 750-501 Programmable Logic ControllerWAGO 750-804 750-501 Programmable Logic ControllerWAGO 750-804 750-501 Programmable Logic ControllerWAGO 750-804 750-501 Programmable Logic Controller

1x WAGO 750-804 Programmable Logic Controller

Input/Output Max 64 I/O Points
Operating Voltage Min 18VDC
Operating Voltage Max 31.2VDC
Load Current 500mA
Baud Rate Max 500kbps
Data Memory 64 kB
Data Buffer 8 kB
Communication Interface Type INTERBUS
Protection Rating IP20
Program Capacity 128 kB
Series 750

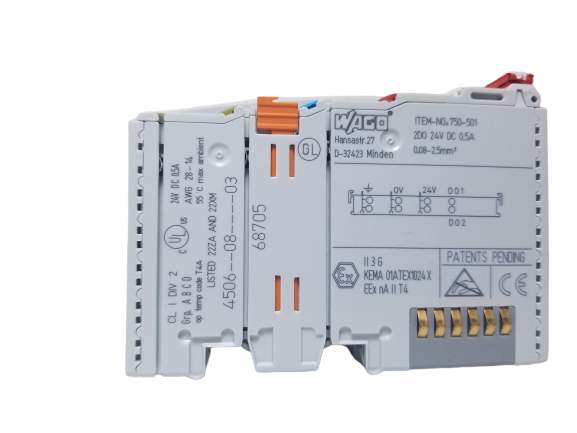

1x WAGO 750-501 2-Channel Digital Output
Number of digital outputs 2
Total number of channels (module) 2
Signal type Digital
Signal type (voltage) 24 VDC
Actuator connection 2 x (2-wire, 3-wire, 4-wire)
Output characteristic high-side switching
Output current per channel 0.5A
Output current short-circuit-protected
Switching frequency (max.) 5 kHz
Load type Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.) 0.5J
Output data width (internal) max. 2Bit
Supply voltage (system) 5 VDC; via data contacts
Supply voltage (field) 24 VDC (-25 … +30 %)
Isolation 500 V system/field
Number of incoming power jumper contacts 3
Number of outgoing power jumper contacts 3
Current carrying capacity (power jumper contacts) 10A
