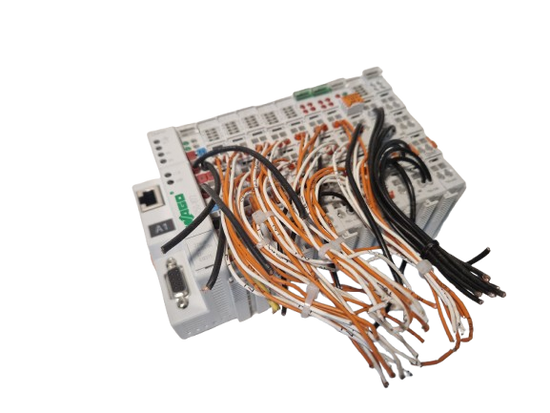

Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430

  • Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430
1 10

Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430

€565,00
€565,00
Add to wishlist Remove from wishlist
Add to compare Remove from compare
Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430Wago I/O module 750-600, 750-530, 750-601, 750-453, 750-430

WAGO 750 Series I/O Module Lot — 750-600, 750-530, 750-601, 750-453, 750-430

Complete modular I/O assembly: power supply, digital I/O, and analog input modules — priced per lot

Overview

This is a bundled lot of WAGO 750 Series modular I/O components, forming a functional building block for a PLC-based automation system. The set includes a fused 24 VDC power supply module, digital output and digital input terminals, analog current input modules, and an end module to terminate the assembly. Together these components support building or expanding a distributed I/O node for field-level sensor and actuator connections. Priced and sold as one complete lot.

Key Features

  • Compact 12 mm module width: All I/O terminals share the slim 12 mm housing footprint typical of the WAGO 750 Series, allowing dense mounting on standard DIN rail.
  • Fused power supply module (750-601): Supplies 24 VDC to connected I/O modules with up to 6.3 A output, protected by a replaceable 5 x 20 mm fuse with LED blown-fuse indication.
  • 8-channel digital output (750-530): Transmits control signals from the automation device to connected actuators; all outputs are short-circuit protected with field/system electrical isolation.
  • 8-channel digital input (750-430, x4): Receives control signals from field devices such as sensors; each module includes a noise-rejection filter and field/system isolation.
  • 4-channel analog input (750-453, x2): Processes standard 0–20 mA single-ended signals with 12-bit resolution and electrical isolation; channels share a common ground potential.
  • End module included (750-600): Terminates the I/O assembly to complete the node.

What's Included

Item Function Qty
WAGO 750-600 End module (assembly terminator) 1
WAGO 750-530 8-channel digital output; 24 VDC; 0.5 A 1
WAGO 750-601 Power supply; 24 VDC; fuse holder 1
WAGO 750-453 4-channel analog input; 0–20 mA; single-ended 2
WAGO 750-430 8-channel digital input 4

Series: WAGO 750 | Total modules in lot: 9

Note: price listed is per complete lot, not per individual module. DIN rail and end clamps not included unless otherwise stated.

Technical Specifications

750-600 (End Module): Dimensions 100 x 12 x 64 mm (l x w x h); operating temperature 0°C to +55°C; PLC terminal, no display.

750-530 (Digital Output): 8 channels; 24 VDC, 0.5 A per channel; short-circuit protected; field/system isolation; 12 mm width.

750-601 (Power Supply): 24 VDC output; max. 6.3 A; fuse-protected (5 x 20 mm replaceable fuse); LED blown-fuse indication.

750-453 (Analog Input): 4 channels; 0–20 mA single-ended input; 12-bit resolution; electrically isolated; common ground per module.

750-430 (Digital Input): 8 channels; 12 mm width; noise-rejection filter per channel; field/system isolation.

Compatibility & Applications

This WAGO 750 Series lot is designed for use in modular PLC I/O systems, suitable for expanding or building distributed automation nodes in industrial control panels, machine builds, and process control applications. The mix of digital output, digital input, and analog current input modules covers common field-device interfacing needs — driving actuators, reading sensor states, and monitoring 0–20 mA process signals — making the lot well suited for automation integrators, panel builders, and maintenance stock replenishment.
